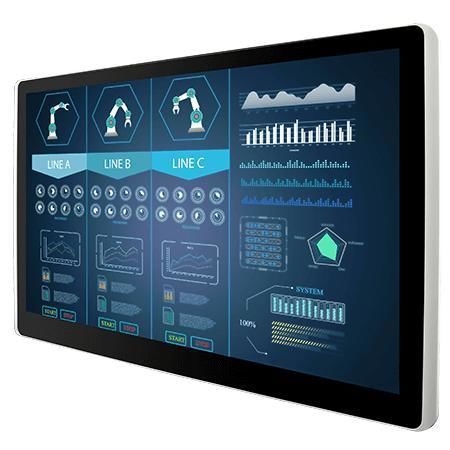

Projected capacitive touchscreen monitor W15L100-PTA3-C

PCAP touchscreenmultitouch screenindustrial

Overview
The W15L100-PTA3-C is a 15.6 inch USB Type-C chassis display designed for industrial and commercial HMI and embedded display applications. It integrates video input, power and touch over a single USB Type-C connector to simplify installation and cable management.

Key features

• 15.6 inches, 1920 x 1080 resolution
• USB Type-C connector (Alt Mode)
• Chassis design for panel integration
• VESA mount support
• Projected Capacitive (P-CAP) multi-touch
• Front protection rating: IP65

Certifications

• CE
• FCC

Product highlights

• Single reversible connector: USB Type-C carries video, power and touch signals via one cable to reduce installation time and cable clutter.
• P-CAP multi-touch: High-sensitivity projected capacitive touch supporting gestures such as pinch-zoom, rotate and multi-finger drag.
• Industrial reliability: Designed and tested for continuous operation in intended industrial and commercial environments.
• Consistent image quality: Industrial display modules assembled for stable brightness and color performance.
• Customization options: Panel brightness, glass surface treatments, display ports, mechanical options and regional power plug styles available on request.

Accessories (examples)

• User manual
• Optional cables: Lockable USB-C to standard USB-C cable; Waterproof USB-C to standard USB-C cable; Dual-side lockable USB Type-C cable; Standard USB Type-C cable

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 15.6 inches
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• View Angles: 85, 85, 85, 85
• Display Color: 262K Colors
• Active Area: 344.16 × 193.59 mm
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certification: CE, FCC
• IO Ports: 1 x USB Type-C connector; Audio: 2 x speaker (optional)
• Mechanical: Dimension 387.8 x 232.9 x 40 mm; Mounting: VESA mount; Enclosure: Plastic; Cooling: Fanless design
• Power: USB Type-C Alt mode (5V/3A)
• Control: 5 keys: -, +, Power, Esc, Enter
