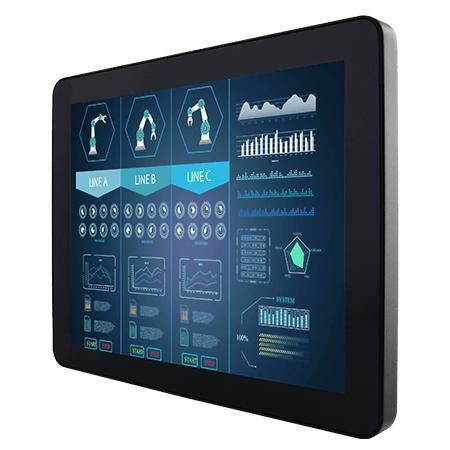

Projected capacitive touchscreen monitor R10L100-GCT2-C

multitouch screenindustrialfor industrial machines

Overview The R10L100-GCT2-C by Winmate is a 10.4-inch USB Type-C chassis display engineered for industrial and commercial deployments. It consolidates video, power and touch into a single USB Type-C connection and provides a front IP65 protection rating, VESA and panel mounting options, and an aluminum, fanless chassis for reliable operation in constrained environments.

Key Features

• 10.4-inch, 1024 x 768 resolution
• USB Type-C connector (Alt Mode for video, power and touch)
• Chassis form factor with VESA / panel mounting
• Projected Capacitive (P-CAP) multi-touch
• Front IP65 protection
• Fanless aluminum enclosure

Product Highlights

• Thin reversible connector: USB Type-C carries video, power and touch over a single reversible cable to simplify cabling and integration.
• Projected Capacitive Multi-Touch (P-CAP): Supports multi-finger gestures such as pinch-to-zoom, rotate and multi-finger drag for modern touch interfaces.
• Industrial mounting: Supports both VESA and panel mounting for integration into cabinets, kiosks and HMI enclosures.
• Fanless thermal design: Aluminum chassis with fanless cooling for silent, dust-tolerant operation in industrial spaces.
• Customization options: Configurable panel brightness, cover glass treatments, display ports and region-specific power/connector options to suit deployment needs.

Certifications

• CE
• FCC

Technical specifications

• Display: Size: 10.4 inch; Resolution: 1024 x 768; Panel Brightness: 350 nits; Contrast Ratio: 1000:1; View Angles: 88/88/88/88; Display Color: 16.2M colors
• Touch / Glass: Projected Capacitive Multi-Touch (default); Protection Glass optional
• Environment: Operating Humidity: 10% to 90% (non-condensing); Operating Temperature: 0 ~ 50°C; Storage Temperature: -10 ~ 60°C
• Certifications: CE, FCC
• IO Ports: 1 x USB Type-C connector; Audio: 1 x Speaker (optional)
• Mechanical: Dimension: 252.41 x 197.8 x 41.4 mm; Mounting: VESA Mount / Panel Mount; Enclosure: Aluminum; Cooling System: Fanless design
• Accessory: Supplied: User Manual; Optional Accessories: Lockable USB-C to Standard USB-C Cable; Waterproof USB-C to Standard USB-C Cable; Dual-side Lockable USB Type-C Cable
• Power: Power Rating: USB Type-C Alt mode (5V/3A)
• Control: 5 Keys: -, +, Power, Esc, Enter
