LCD monitor W07L100-GCT1-C
projected capacitive touchscreenmultitouch screenindustrial

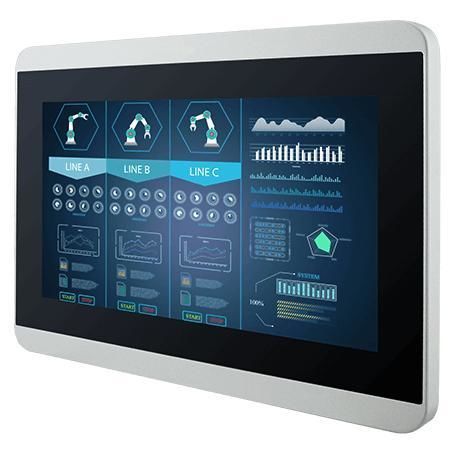

LCD monitor - W07L100-GCT1-C - Winmate, Inc. - projected capacitive touchscreen / multitouch screen / industrial
LCD monitor - W07L100-GCT1-C - Winmate, Inc. - projected capacitive touchscreen / multitouch screen / industrial
LCD monitor - W07L100-GCT1-C - Winmate, Inc. - projected capacitive touchscreen / multitouch screen / industrial - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, projected capacitive touchscreen, multitouch screen
Applications
industrial, for HMI interface
Display size
7"
Resolution
1024 x 600
Mounting
VESA mounting, panel-mount, chassis-mounted
Other characteristics
USB Type-C, aluminum, fanless, IP65
Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Short description
Winmate 7.0-inch USB Type-C chassis display W07L100-GCT1-C for industrial and commercial applications; single-cable video, power and touch integration for simplified installation.

Key features
  • 7.0 inches, 1024 x 600
  • USB Type-C connector (video + power + touch)
  • Chassis mounting / panel front
  • VESA mount compatible
  • Projected Capacitive (PCAP) multi-touch
  • Front protection: IP65 (model dependent)


Overview
  • Thin reversible connector: USB Type-C carries video input, power delivery and touch data over a single reversible cable to reduce wiring and simplify integration.
  • Projected Capacitive multi-touch (P-CAP): High-sensitivity multi-touch support for gestures (pinch/zoom, drag/drop) and smooth user interaction in industrial HMI contexts.
  • Durability for industrial use: Engineered and tested for industrial environments to meet operational and durability requirements, with robust metal enclosure and fanless design.
  • Consistent image quality: Industrial-grade display modules and controlled assembly ensure stable image performance and long-term reliability.
  • Display ports and customization: Multiple customization options available including panel brightness, glass surface treatment, display ports, mounting and enclosure choices.


Certifications
  • CE
  • FCC


Accessories (selected)
  • User manual
  • Optional: Lockable USB-C to Standard USB-C cable
  • Optional: Waterproof USB-C to Standard USB-C cable
  • Optional: Dual-side lockable USB Type-C cable


Technical specifications
  • Model: W07L100-GCT1-C
  • Display size: 7.0 inches
  • Resolution: 1024 x 600
  • Panel brightness: 320 nits
  • Contrast ratio: 500:1
  • View angles: 75, 75, 75, 70
  • Display color: 16.7M colors
  • Touch / Glass: Projected Capacitive Multi Touch (default); Protection Glass (optional)
  • Operating temperature: 0 ~ 50 °C
  • Storage temperature: -10 ~ 60 °C
  • Operating humidity: 10% to 90% (non-condensing)
  • Certification: CE, FCC
  • USB port: 1 x USB Type-C connector
  • Audio: 1 x Speaker (optional)
  • Dimensions: 189.4 x 145.4 x 39.8 mm
  • Mounting: VESA mount / Panel mount
  • Enclosure: Aluminum
  • Cooling system: Fanless design
  • Power rating: USB Type-C Alt mode (5V/3A)
  • Control: 5 keys (-, +, Power, Esc, Enter)
