LCD monitor R08T200-65U1

resistive touch screenfor pharmaceutical applicationsfor hygienic applications

Product Overview

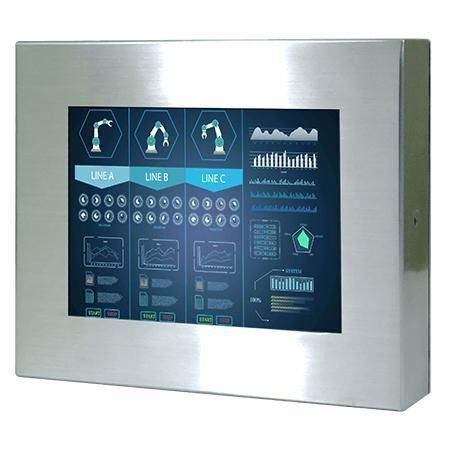

The R08T200-65U1 is an 8.4 in resistive chassis display with SUS 316 / AISI 316 stainless housing and full IP65 protection. Designed for harsh and hygienic environments (food processing, beverage, chemical and pharmaceutical plants), it offers fanless operation, VESA/YOKE mounting and options for optical bonding or protective glass.

Key Features

• 8.4 inches, 800 x 600
• Support VESA / YOKE mount
• Chassis type
• Stainless housing SUS 316 / AISI 316
• Full IP65 waterproof and dustproof
• Optical bonding (optional)

Certifications

• IP65
• FCC
• CE

Dust and Water Resistant
The display complies with IP65 water and dust resistance and is suited to regular cleaning procedures and strict hygiene standards required in food, beverage and pharmaceutical environments.

Comprehensive I/O Ports
Includes multiple I/O ports with waterproof connectors and protective caps to keep interfaces sealed when not in use and to maintain system reliability in wet or dusty conditions.

Resistive Touch / Optional Protection Glass
Available with resistive touch; optional protection glass (without touch) increases scratch and impact resistance while remaining operable under adverse conditions such as cold or wet fingers.

Fully Sealed Connector and Cable Protection
Sealed M12 connectors and cable protection provide secure installations in the harshest industrial environments.

Outstanding Image Quality
High-brightness panel and clean-room assembly deliver reliable image quality suitable for industrial inspection and control tasks.

Customization Options
Customizable items include product size, customer logo, LCD brightness, glass cover surface treatment, display port selection and country-specific power plug configurations. Customization requests must be managed through the vendor's official channels.

Technical specifications

• Size: 8.4 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• View Angles: 75, 75, 60, 70
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Mechanical Dimensions: 250 x 200 x 50 mm
• Mounting: VESA Mount / YOKE
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certifications: CE, FCC
• IO Ports — USB: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports — Serial: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports — Video: 1x M12 type connector for VGA input
• Indicators: 1 x LED indicator for power; 1 x LED indicator for status
• Power Input: 1 x M12 waterproof connector for 12V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Included Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional Accessories: External USB cable with waterproof connector for touchscreen control (Optional); external RS232 cable with waterproof connector for touchscreen control (Optional)
• Power Rating: 12V DC (M12 type)
