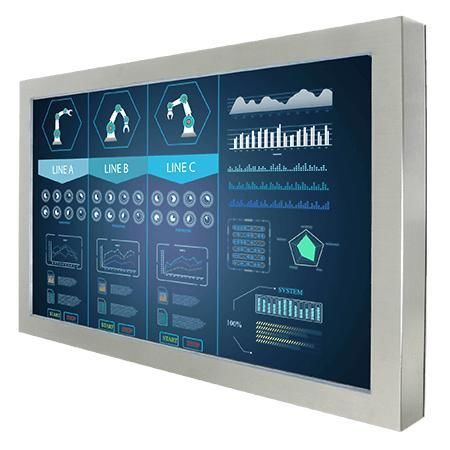

LCD monitor W42L300-65A3

industrial42"1920 x 1080

Overview
Industrial 42-inch IP65 stainless steel chassis display W42L300-65A3 designed for hygienic and harsh production environments such as food & beverage, pharmaceutical and chemical processing. Front protection glass, full SUS 316 / AISI 316 housing, fanless design and sealed connectors ensure reliable operation during regular cleaning and in dusty or wet conditions.

Key features

• 42-inch, 1920 x 1080 Full HD display with 500 nits brightness
• SUS 316 / AISI 316 stainless steel housing, IP65 front protection
• VESA mounting
• Fanless cooling for increased reliability

Certifications

• IP65
• CE
• FCC

Detailed features

• Image quality: display modules assembled in cleanroom for consistent, vivid image reproduction
• Protection glass: scratch-resistant glass able to withstand low temperatures, wet fingers and dusty environments
• Sealed connectivity: waterproof caps and sealed connectors (M12); optional waterproof HDMI/DVI
• Serviceability: modular assembly to simplify integration and maintenance

Technical specifications

• Model: W42L300-65A3
• Display size: 42.0 inches
• Touch / Glass: Protection Glass
• Resolution: 1920 x 1080
• Panel brightness: 500 nits
• Contrast ratio: 4000:1
• Viewing angles: 89, 89, 89, 89
• Display colors: 1.07B Colors
• Active area: 930.24 x 523.26 mm
• Mechanical dimensions: 1046 x 633 x 64.6 mm
• Weight: 34 Kg
• Mounting: VESA Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• Certifications: CE, FCC

I/O and controls

• Video ports: 1 x M12 type connector for VGA input (default); 1 x waterproof DVI input (optional); 1 x waterproof HDMI connector (optional)
• Indicators: 1 x LED indicator for power; 1 x LED indicator for status
• Control buttons: 1 x Power; 1 x Adjust up; 1 x Adjust down; 1 x ESC (Auto); 1 x OK (Menu)

Accessories

• Included: 100~240V AC to DC adapter with waterproof connector; power cord; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional: external HDMI cable with waterproof connector; external DVI cable with waterproof connector; external power cable with waterproof connector (for AC power build-in)

Power & environment

• Power input: 1 x M12 waterproof connector for 24V DC
• Power rating: 24V DC (M12 type)
