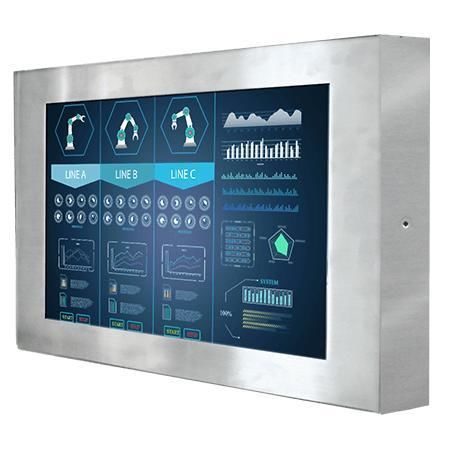

Resistive touch screen monitor W22L100-65A3

21.5"1920 x 1080VESA mounting

Overview
Industrial 21.5-inch IP65 stainless resistive chassis display W22L100-65A3 for hygienic and harsh environments. Stainless housing (SUS 316 / AISI 316), full front IP65 protection, VESA and yoke mounting support, resistive touch or optional protection glass, optional optical bonding, fanless design and configurable I/O.

Key Features

• 21.5" diagonal, 1920 × 1080 (Full HD)
• Resistive chassis with IP65 waterproof and dustproof front
• Stainless housing SUS 316 / AISI 316
• VESA and YOKE mounting support
• Optional optical bonding and protection glass
• Fanless design and waterproof M12 I/O connectors

Certifications

• IP65
• CE
• FCC

Benefits & Product Details

• Hygienic cleaning: IP65 rating allows regular washdown and compliance with strict hygiene processes for food, beverage and pharmaceutical environments.
• Sealed I/O: Waterproof connectors with protective caps provide secure connections in wet or dusty locations.
• Resistive touch / protection glass: Operable with wet fingers and under dusty conditions; optional protection glass preserves functionality despite surface scratches or impacts.
• Robust mounting: VESA and yoke options for panel, machine or console integration.
• Customization: Configurable size, panel brightness, glass treatment, ports and regional power plug options.

Technical specifications

• Model: W22L100-65A3
• Display: 21.5 inches; Resolution: 1920 x 1080; Panel brightness: 250 nits; Contrast ratio: 3000:1; View angles: 89/89/89/89; Colors: 16.7M; Active area: 476.64 x 268.11 mm
• Mechanical: Dimension: 550 x 340 x 58.6 mm; Weight: 10.3 kg; Enclosure: Stainless housing (SUS 316 / AISI 316)
• Mounting: VESA mount and yoke mount supported
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP rating: IP65
• I/O & Video: USB: 1x M12 waterproof connector (optional for touch); Serial: 1x M12 waterproof (optional); Video: 1x M12 VGA (default); optional waterproof DVI and HDMI connectors
• Controls: Buttons: Power, Adjust Up, Adjust Down, ESC (Auto), OK (Menu)
• Power: 12V DC via M12 waterproof connector; Power adapter 100–240V AC to DC included
• Accessories (included): Power adapter with waterproof connector, power cord, external VGA cable with waterproof connectors, waterproof caps, manual, VESA screws
• Optional accessories: Yoke mount stand; waterproof HDMI/DVI/USB/RS232 external cables
