LCD monitor W24L100-65A2

resistive touch screenfor food applicationsfor hygienic applications

Overview

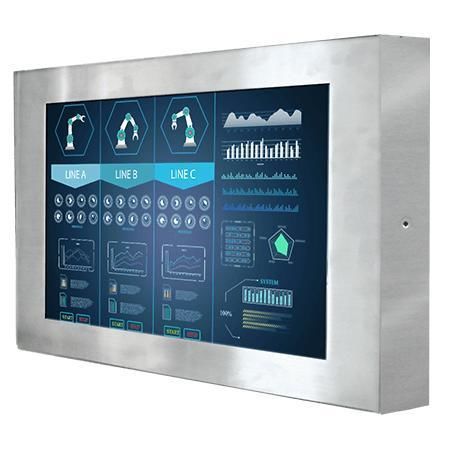

The W24L100-65A2 is a 24" IP65 stainless resistive chassis display engineered for harsh industrial and hygienic environments. It features full IP65 front protection, a stainless SUS 316 housing and optional optical bonding. Mounting options include standard VESA and optional yoke mount. Typical applications: food processing, beverage, chemical, pharmaceutical and other hygienic industries.

Key Features

• 24", 1920 x 1080 resolution
• Support VESA / YOKE mount
• Chassis display with stainless housing SUS 316 / AISI 316
• Full IP65 waterproof and dustproof
• Optical bonding (optional)

Certifications

• CE
• FCC
• IP65 rating

Product Highlights

• Dust and Water Resistant: Complies with IP65 for regular cleaning processes and strict hygiene standards.
• Comprehensive I/O Ports: Multiple connector options with waterproof protective caps for peripherals and video inputs.
• Resistive Touch / Optional Protection Glass: Resistive touch option and protection glass without touch function; designed to remain operable under wet or scratched conditions.
• Fully Sealed Connector and Cable Protection: Connectors and protective caps provide sealed installation for harsh environments.
• Outstanding Image Quality: Industrial-grade display modules assembled in clean-room conditions for reliable image performance.
• Display Ports and Customization: Wide customization options including product size, logo, LCD brightness, glass surface treatment, display ports and country-specific power plug selections.

Technical Specifications

• Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Dimension: 600 x 380 x 60.9 mm
• Weight: 12.5 Kg
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• IO Ports: USB - 1x M12 waterproof connector for touch screen control (Optional)
• Serial Port: 1x M12 waterproof connector for touch screen control (Optional)
• Video: 1x M12 type connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof connector for HDMI input (Optional)
• Indicator: 1 x LED Indicator for power; 1 x LED Indicator for status
• Power Input: 1 x M12 waterproof connector for 12V DC
• Control Buttons: 1 x Power Button; 1 x Adjust up button; 1 x Adjust down button; 1 x ESC (Auto) button; 1 x OK (Menu) button
• Accessory (included): 100~240V AC to DC Adapter with waterproof connector; Power Cord; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Optional Accessory: Yoke mount stand; External HDMI cable with waterproof connector; External DVI cable with waterproof connector; External USB cable with waterproof connector for touchscreen control; External RS232 cable with waterproof connector for touchscreen control
• Power Rating: 12V DC (M12 type)
