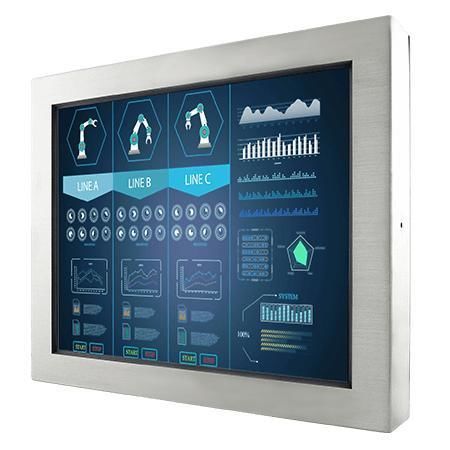

LCD monitor R15L600-65C3

resistive touch screenfor industrial machinesfor chemical applications

Product
15-inch IP65 stainless steel chassis resistive display R15L600-65C3. 1024 x 768 resolution, SUS 316 housing, fully IP65 rated for washdown and dustproof environments. Optional resistive touch or protection glass and optional optical bonding. Multiple waterproof I/O with M12 connectors and protective caps. Customizable options for size, brightness, glass treatment and connectors.

Key Features

• 15", 1024 x 768, 300 nits
• Supports VESA / Yoke mount
• Chassis design with Stainless Housing (SUS 316 / AISI 316)
• Full IP65 waterproof and dustproof protection
• Resistive touch (optional) / Protection glass (optional)
• Optical bonding (optional)
• Fanless design

Certifications

• IP65
• CE
• FCC

Applications

• Food & Beverage processing lines
• Pharmaceutical production and laboratories
• Chemical plants and hygienic manufacturing
• Industrial HMI in washdown environments

Technical specifications

• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Mechanical Dimension: 378 x 301 x 60 mm
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certification: CE, FCC
• USB Port: 1x M12 waterproof connector for touch screen control (Optional)
• Serial Port: 1x M12 waterproof connector for touch screen control (Optional)
• Video Inputs: 1x M12 type connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof connector for HDMI input (Optional)
• Indicator: 1x LED Indicator for power; 1x LED Indicator for status
• Power Input: 1x M12 waterproof connector for 12V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Accessories (included): 100~240V AC to DC Adapter with waterproof connector; Power Cord; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Optional Accessories: Yoke mount stand; External HDMI/DVI/USB/RS232 cables with waterproof connectors for touchscreen control
• Power Rating: 12V DC (M12 type)
