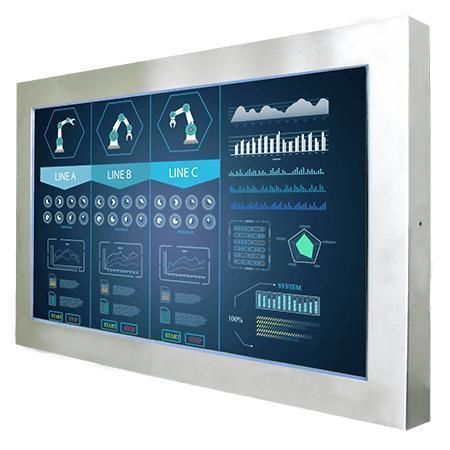

LCD monitor W32L300-65A3

industrialfor chemical applicationsfor pharmaceutical applications

Overview
Industrial 32-inch IP65 stainless chassis display W32L300-65A3 designed for food processing, beverage, pharmaceutical and chemical environments. Front panel and enclosure provide IP65 protection; housing material SUS 316 / AISI 316. Supports VESA and YOKE mounting. Optical bonding and other custom options available.

Key Features

• 32-inch, 1920 x 1080 resolution
• Stainless housing SUS 316 / AISI 316
• Full IP65 waterproof and dustproof front and sealed connectors
• Supports VESA and YOKE mounting
• Optical bonding available (optional)
• Fanless design for reliable industrial operation

Certifications

• IP65
• CE
• FCC

Product Details

• Dust and Water Resistant: Front panel meets IP65 for regular cleaning and strict hygiene requirements in food, beverage and pharmaceutical industries.
• Protection Glass: Hardened protection glass resists low temperatures, wet fingers and dusty conditions; preserves operability with surface scratches.
• Fully Sealed Connector and Cable Protection: Sealed M12 and waterproof connectors with protective caps for harsh environments.
• Outstanding Image Quality: Industrial-grade display modules assembled in a clean room for consistent color and image performance.
• Display Ports and Customization: Configurable video inputs (M12 VGA default, optional waterproof DVI/HDMI), panel brightness, glass treatment, customer logo and power plug options.

Technical specifications

• Size: 32.0 inches
• Touch / Glass: Protection Glass
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Dimension: 785 x 475 x 87.8 mm
• Weight: 18 Kg
• Mounting: VESA / YOKE
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• IO Ports: Video - 1 x M12 type connector for VGA input (default); 1 x waterproof DVI input (optional); 1 x waterproof HDMI connector (optional)
• Indicator: 1 x LED power; 1 x LED status
• Power Input: 1 x M12 waterproof connector for 24V DC
• Control Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories: 100-240V AC to DC adapter with waterproof connector, power cord, external VGA cable with waterproof connector, waterproof caps, manual, VESA screws
• Optional Accessories: External HDMI/DVI cables with waterproof connectors, external power cable with waterproof connector (for AC power build-in)
• Power Rating: 24V DC (M12 type)
