LCD monitor W55L100-65T1

for chemical applicationsfor pharmaceutical applicationsfor food production line

Overview

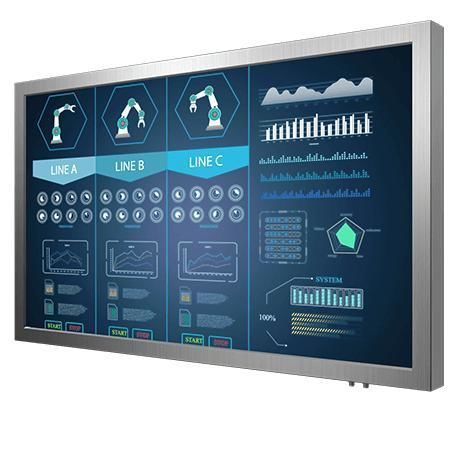

Winmate 55-inch IP65 stainless housing display W55L100-65T1 with SUS 316 / AISI 316 enclosure. UHD 3840 x 2160 panel with protection glass, designed for washdown environments in food, beverage, chemical and pharmaceutical industries. Fully sealed front and waterproof connectors; fanless design for reduced particle ingress and low acoustic emission.

Key features

• 55" UHD 3840 x 2160 display, 500 nits, 1300:1 contrast
• SUS 316 / AISI 316 stainless steel enclosure, IP65 front protection
• Protection glass (non-touch) with scratch resistance
• Fanless design and fully sealed connectors with protective caps
• VESA mount compatible; modules assembled in cleanroom
• Customizable options: size, customer logo, LCD brightness, glass surface treatment, display ports and country-specific power plug

Certifications

• IP65
• CE
• FCC

Technical specifications

• Model: W55L100-65T1
• Display size: 55 inches
• Touch / Glass: Protection Glass Only
• Resolution: 3840 x 2160 (UHD)
• Panel brightness: 500 nits
• Contrast ratio: 1300:1
• Viewing angles: 89° / 89° / 89° / 89°
• Display color: 1.07B colors
• Active area: 1209.6 x 680.4 mm
• Dimensions: 1302.5 x 769 x 54 mm
• Mounting: VESA mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• Certifications: CE, FCC, IP65

Connectivity & accessories

• Video I/O: 1 x M12 type connector for VGA input (default); 1 x waterproof DVI input (optional); 1 x waterproof HDMI input (optional)
• Indicator: 1 x LED power indicator; 1 x LED status indicator
• Power input: 1 x M12 waterproof connector for AC-in (100 ~ 240V AC-in)
• Control buttons: Power, Adjust Up, Adjust Down, ESC (Auto), OK (Menu)
• Standard accessories: External power cable with waterproof connector; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Optional accessories: External HDMI cable with waterproof connector (optional); external DVI cable with waterproof connector (optional)
