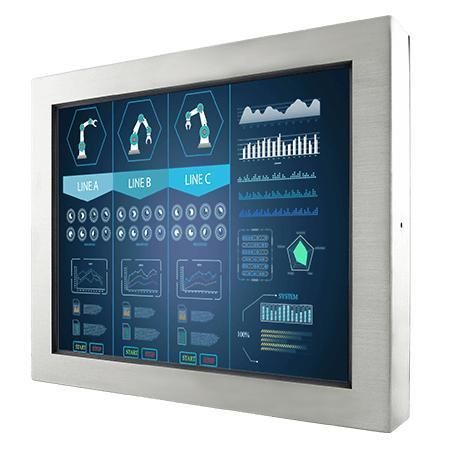

Touch screen monitor R19L300-65M1

resistive touch screenfor industrial machinesfor displays

Overview
The R19L300-65M1 is a 19-inch IP65-rated stainless steel resistive chassis display engineered for food processing, beverage and chemical industry environments. It features a SUS 316 / AISI 316 housing, VESA and yoke mounting support, optional resistive touch or protection glass, optical bonding (optional) and a fanless design for reliable operation in wet, dusty or hygiene-sensitive conditions.

Key Features

• 19", 1280 x 1024 resolution
• Stainless steel chassis (SUS 316 / AISI 316)
• IP65 full waterproof and dustproof protection
• Support for VESA and yoke mounting
• Resistive touch screen or protection glass (optional)
• Optical bonding (optional)

Certifications

• IP65
• FCC
• CE

Highlights

• Hygiene and washdown ready: IP65 rating enables regular cleaning and compliance with strict hygiene procedures.
• Sealed I/O: Multiple ports with waterproof M12/DVI/HDMI options and protective caps for secure connections.
• Touch and protection options: Resistive touch suitable for wet or gloved use; optional protection glass resists scratches and sharp objects.
• Fully sealed connectors and cable protection for harsh industrial installation.
• Industrial display quality: Modules assembled in a clean-room environment for consistent image performance.
• Customization: Options for size, panel brightness, glass treatment, ports and customer logo.

Technical specifications

• Model: R19L300-65M1
• Display - Size: 19.0 inches
• Display - Resolution: 1280 x 1024
• Display - Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Display - Panel Brightness: 250 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85 / 85 / 80 / 80
• Display - Display Color: 16.7M Colors
• Display - Active Area: 376.32 x 301.06 mm
• Mechanical - Dimension: 468 x 395 x 63 mm
• Mechanical - Weight: 10 kg
• Mechanical - Mounting: VESA Mount; Yoke Mount
• Mechanical - Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 45°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - IP rating: IP65
• Certification: CE, FCC
• IO Ports - USB: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports - Serial: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports - Video: 1x M12 connector for VGA (Default); 1x waterproof DVI input (Optional); 1x waterproof HDMI input (Optional)
• IO Ports - Indicators: 1x LED power; 1x LED status
• IO Ports - Power Input: 1x M12 waterproof connector for 12V DC
• Control - Buttons: Power; Adjust Up; Adjust Down; ESC (Auto); OK (Menu)
• Accessories - Included: 100–240V AC to DC adapter with waterproof connector; power cord; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws
• Accessories - Optional: Yoke mount stand; external HDMI/DVI/USB/RS232 cables with waterproof connectors
• Power - Power Rating: 12V DC (M12 type)
