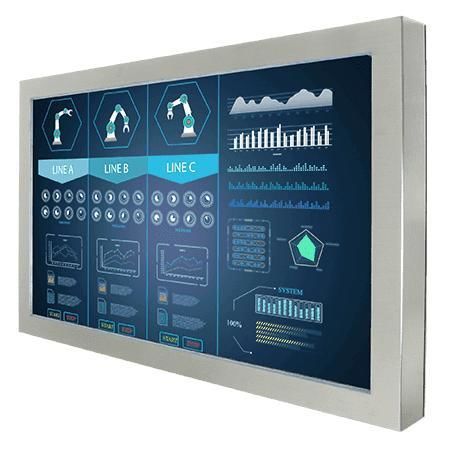

LCD monitor W43L100-65A1

industrialfor industrial machinesfor chemical applications

Product Overview
The Winmate W43L100-65A1 is a 42.5-inch IP65 stainless chassis display engineered for hygienic and harsh industrial environments such as food processing, beverage and chemical plants. It combines a SUS 316 / AISI 316 stainless enclosure, fully sealed connectors and a fanless design to support regular washdowns and continuous operation.

Key Features

• 42.5-inch, 1920 x 1080 resolution IP65 stainless chassis display
• Chassis mounting with VESA compatibility
• Stainless housing (SUS 316 / AISI 316)
• Full IP65 waterproof and dustproof enclosure
• Protection glass resistant to cold, wet fingers and abrasion

Overview Details

• Dust and Water Resistant: IP65 rating enables regular cleaning processes and meets strict hygiene requirements for food, beverage and pharmaceutical production areas.
• Protection Glass: Protective glass shields the panel from sharp foreign objects and maintains operability even with surface scratches or wet touch input.
• Fully Sealed Connectors and Cable Protection: IP65-rated M12 power/video connectors and waterproof video inputs with protective caps allow installation in demanding industrial sites.
• Outstanding Image Quality: Industrial-grade LCD modules assembled in clean-room conditions ensure consistent image performance for factory integration.
• Display Ports and Customization: Configurable options include product size, customer logo, LCD brightness, glass surface treatment, display ports and regional power plug styles.

CERTIFICATIONS

• IP65
• FCC
• CE

Technical specifications

• Model: W43L100-65A1
• Brand: Winmate
• Touch / Glass: Protection Glass
• Size: 42.5 inches
• Resolution: 1920 x 1080
• Panel Brightness: 500.0 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 940.896 x 529.254 mm
• Dimension: 1046 x 633 x 64.6 mm
• Weight: 34 Kg
• Mounting: VESA Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certification: CE, FCC
• Video Inputs: 1 x M12 type connector for VGA input (Default); 1 x waterproof DVI input (Optional); 1 x waterproof HDMI input (Optional)
• Indicator: 1 x LED indicator for power; 1 x LED indicator for status
• Power Input: 1 x M12 waterproof connector for 24V DC
• Buttons / Control: 1 x Power Button; 1 x Adjust Up button; 1 x Adjust Down button; 1 x ESC (Auto) button; 1 x OK (Menu) button
• Accessories Included: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Optional Accessories: External HDMI cable with waterproof connector; External DVI cable with waterproof connector; External Power cable with waterproof connector (for AC power built-in)
• Power Rating: 24V DC (M12 type)
