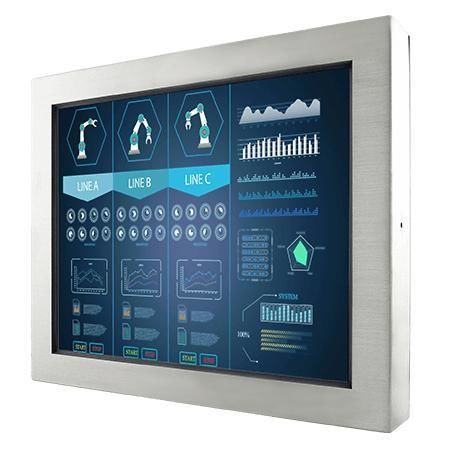

Resistive touch screen monitor R17L500-65M1
for chemical applicationsfor pharmaceutical applicationsfor food production line

Resistive touch screen monitor - R17L500-65M1 - Winmate, Inc. - for chemical applications / for pharmaceutical applications / for food production line
Resistive touch screen monitor - R17L500-65M1 - Winmate, Inc. - for chemical applications / for pharmaceutical applications / for food production line
Resistive touch screen monitor - R17L500-65M1 - Winmate, Inc. - for chemical applications / for pharmaceutical applications / for food production line - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
resistive touch screen
Applications
for chemical applications, for pharmaceutical applications, for food production line
Display size
17"
Resolution
1280 x 1024
Mounting
VESA mounting
Other characteristics
fanless, stainless steel, IP65, waterproof, dust-proof, full IP65
Operating temperature

Min.: 0 °C
(32 °F)

Max.: 45 °C
(113 °F)

Description

Key features
  • 17" display, 1280 x 1024 resolution
  • Stainless housing SUS 316 / AISI 316, front panel IP65
  • Supports VESA and YOKE mounting
  • Resistive touch option / protection glass option
  • Full IP65 waterproof and dustproof design; M12 waterproof connectors
  • Optical bonding available (optional)


Overview
  • Designed for hygienic and wash-down environments in food & beverage, pharmaceutical and chemical industries.
  • Sealed construction and protected I/O ports ensure reliable operation in dusty, wet or corrosive conditions.
  • Resistive touch and optional protection glass provide reliable input with wet or gloved hands and additional surface protection against sharp objects.
  • Fanless design and stainless enclosure enable installation where contamination control and cleaning are required.
  • Multiple customization options: product size, logo, LCD brightness, glass surface treatment, display ports and country-specific power connectors.


Certifications
  • IP65
  • CE
  • FCC


Technical specifications
  • Display — Size: 17.0 inches
  • Display — Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
  • Display — Resolution: 1280 x 1024
  • Display — Panel Brightness: 350 nits
  • Display — Contrast Ratio: 1000:1
  • Display — View Angles: 85, 85, 80, 80
  • Display — Display Color: 16.2M Colors
  • Display — Active Area: 337.920 x 270.336 mm
  • Mechanical — Dimension: 412 x 344 x 63.3 mm
  • Mechanical — Weight: 8.5 kg
  • Mechanical — Mounting: VESA Mount; Yoke Mount
  • Mechanical — Enclosure: Stainless Housing (SUS 316 / AISI 316)
  • Mechanical — Cooling System: Fanless design
  • Environment — Operating Humidity: 10% to 90% RH, Non-Condensing
  • Environment — Operating Temperature: 0°C to 45°C
  • Environment — Storage Temperature: -20°C to 60°C
  • Environment — IP rating: IP65
  • Certification: CE, FCC
  • IO Ports — USB Port: 1x M12 waterproof connector for touch screen control (Optional)
  • IO Ports — Serial Port: 1x M12 waterproof connector for touch screen control (Optional)
  • IO Ports — Video: 1x M12 type connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof connector for HDMI input (Optional)
  • IO Ports — Indicator: 1x LED Indicator for power; 1x LED Indicator for status
  • IO Ports — Power Input: 1x M12 waterproof connector for 12V DC
  • Control — Button: 1x Power; 1x Adjust up; 1x Adjust down; 1x ESC (Auto); 1x OK (Menu)
  • Accessory — Included: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
  • Accessory — Optional: Yoke mount stand; External HDMI/DVI/USB/RS232 cables with waterproof connectors for touchscreen control
  • Power — Power Rating: 12V DC (M12 type)
