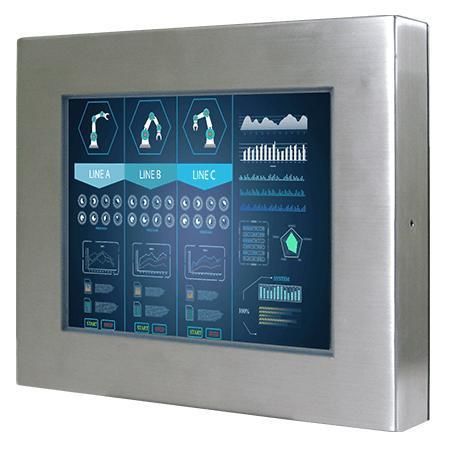

LCD monitor R10L100-65T2

resistive touch screenfor industrial machinesfor chemical applications

Key features

• 10.4 inches, 1024 x 768
• Support VESA / YOKE mount
• Chassis design with stainless housing SUS 316 / AISI 316
• Full IP65 waterproof and dustproof
• Optical bonding (optional)

Certifications

• IP65
• CE
• FCC

Overview
The R10L100-65T2 is a 10.4-inch IP65 stainless resistive chassis display designed for food processing, beverage and chemical industry applications requiring frequent cleaning and strict hygiene. The enclosure and front panel meet IP65 for water and dust protection.

Design and connectivity
Comprehensive I/O with waterproof protective caps provides sealed connections for harsh environments. Connectors are secured and covered when not in use to maintain ingress protection.

Touch and front protection
Available with a resistive touch screen or protection glass without touch. The resistive touch option supports operation with cold temperatures, wet fingers and dust. Protection glass guards the surface from sharp objects and preserves usability if scratched.

Installation and environment
Fully sealed connector and cable protection, fanless design and stainless housing enable installation in demanding industrial settings. Operating range: 0°C to 45°C; storage: -20°C to 60°C; humidity 10%–90% RH non-condensing.

Customization
Custom options include product size, customer logo, LCD brightness, glass surface treatment, display ports and power plug styles to match regional requirements.

Technical specifications

• Model: R10L100-65T2
• Display Size: 10.4 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 88,88,88,88
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Dimension: 289 x 246 x 49.9 mm
• Weight: 3.81 Kg
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• IO Ports - USB Port: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports - Serial Port: 1x M12 waterproof connector for touch screen control (Optional)
• IO Ports - Video: 1x M12 type connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof connector for HDMI input (Optional)
• Indicator: 1 x LED Indicator for power; 1 x LED Indicator for status
• Power Input: 1 x M12 waterproof connector for 12V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Accessory (standard): 100~240V AC to DC Adapter with waterproof connector; Power Cord; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Optional Accessory: Yoke mount stand; External HDMI/DVI/USB/RS232 cables with waterproof connectors (Optional)
• Power Rating: 12V DC (M12 type)
