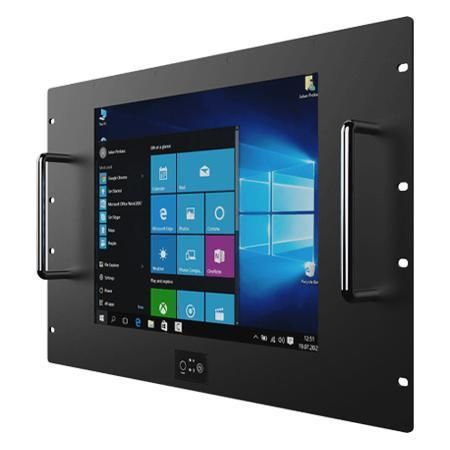

Resistive touch screen panel PC R15IAD7T-RKC3

LCD15"Intel® Core i3

Product Overview
The Winmate R15IAD7T-RKC3 is a 15-inch rack-mount panel PC for industrial automation, machine control and operator HMI. It supports 12th–14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake / Meteor Lake variants), offers DDR5 memory, NVMe storage options and integrated dual 2.5 GbE for high-performance networked applications.

Key Features

• 15.0" 1024 x 768 rack-mount panel PC
• Intel® Core™ processors: i3 / i5 / i7 / i9 options
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB
• Integrated dual 2.5 Gigabit Ethernet
• DP1.4a (default) and HDMI 2.0b (optional) for multi-display
• 4 x USB 3.2 Gen2 Type-A, serial ports, audio I/O
• 12 V DC power input; fan-assisted cooling; metal enclosure

Overview Details

• HDMI, DP or VGA signal support ensures compatibility with embedded boards and industrial systems.
• Touch options: optional resistive touch or protection glass (no touch) to match operational needs.
• Chassis design: metal housing with pull-out drawer; supports VESA and optional 7U rack mounting for server-room installation.

Display

• Size: 15.0 inches
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast Ratio: 2000:1
• Viewing Angles: 88/88/88/88
• Active Area: 304.1 x 228.1 mm

System Specification

• Processor examples: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; later T/T E variants available.
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional 256GB–4TB NVMe; optional 2 x SATA III for 2.5" drives (RAID support)
• Ethernet: Dual Intel® 2.5GbE controllers
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional via M.2 expansion

Mechanical

• Dimensions: 482 x 310 x 76 mm
• Weight: 4.2 kg
• Mounting: VESA (default); Rack mount 7U (optional)
• Enclosure: Metal housing
• Cooling: Fan-assisted

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 4 x USB 3.2 Gen2 Type-A (10 Gbps)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x DP1.4a (default, up to 4096x2160@60Hz); 1 x HDMI 2.0b (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC (DIN4)

Control

• Buttons: 1 x Power, 1 x Reset

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Technical specifications

• Model: R15IAD7T-RKC3
• Brand: Winmate
• Display: 15.0", 1024 x 768, 300 nits, 2000:1
• Processor options: Intel® Core™ i3/i5/i7/i9 (various T/TE/T SKUs)
• Memory: 2 x SO-DIMM DDR5 4800MHz, up to 64GB
• Storage options: NVMe M.2; optional SATA III x2 for 2.5" drives
• LAN: Dual 2.5GbE
• USB: 4 x USB 3.2 Gen2 Type-A
• Video: DP1.4a (default), HDMI 2.0b (optional)
• Power: 12V DC input; adapter 12V 220W
• Dimensions / Weight: 482 x 310 x 76 mm / 4.2 kg
• Mounting: VESA default; Rack 7U optional
• Enclosure: Metal, fan-cooled
• Operating range: 0°C–50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
