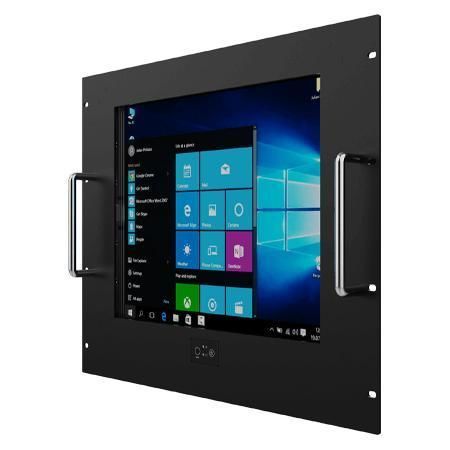

Resistive touch screen panel PC R17IAD7T-RKM1

17"Intel® Core i3Intel® Core i5

Overview
The Winmate R17IAD7T-RKM1 is a 17" rackmount panel PC based on 12th/14th Gen Intel® Core™ processors (Alder Lake S and newer T variants). It is built for machine control, factory automation and operator HMI tasks in industrial and embedded environments, offering stable hardware integration, a metal enclosure and long lifecycle availability for OEMs and system integrators.

Highlights

• 17" display, 1280 x 1024, 350 nits, 1000:1 contrast
• Intel® Core™ i3 / i5 / i7 / i9 options (12th & 14th Gen T/TE variants)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet
• Multi-display: DP 1.4a (default), HDMI 2.0b optional
• Multiple I/O: 4 x USB 3.2 Gen2, serial ports, audio, expansion slots
• 12 V DC input (Din4 pin connector), fan-cooled design, TPM 2.0

Product features and operator-focused design
The unit provides VGA/HDMI/DP signal interfaces for straightforward integration with embedded boards and systems. Display surface options include an optional resistive touch or protection glass (no-touch) to suit operator requirements. The metal housing with a pull-out drawer supports rack mounting and VESA mounting; a fan-based cooling system maintains thermal stability. Security features include TPM 2.0 and options for wireless connectivity via M.2 slots.

Certifications
CE, FCC

Technical specifications

• Model: R17IAD7T-RKM1
• Display: 17.0" / 1280 x 1024 / 350 nits / 1000:1 / Viewing angles 85/85/80/80
• Touch / Glass: optional resistive touch or protection glass (no touch)
• Processors (examples): Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; also i3-14100T, i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Ethernet: 2 x Intel® 2.5GbE
• USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP1.4a (DP++), up to 4096 x 2160@60Hz (default); HDMI 2.0b optional
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power: 1 x 12V DC (Din4 pin); adapter 12V 220W (accessory)
• Dimensions / Weight: 482.6 x 399 x 92 mm / 5.9 kg
• Mounting: VESA default; Rack mount (9U) optional
• Operating: 0°C to 50°C; 10% to 90% RH non-condensing
• Security: TPM 2.0
• Certifications: CE, FCC
