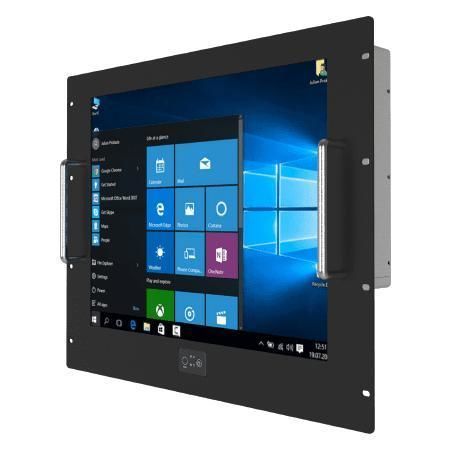

Resistive touch screen panel PC R19IT7T-RKM1

19"Intel® Core i5Intel® Tiger Lake-U

Overview
The R19IT7T-RKM1 is a 19-inch rack mount panel PC powered by Intel® Core™ Tiger Lake UP3 i5 processors. It is designed for machine control, factory automation and operator HMI applications where reliable industrial performance, multiple I/O and long lifecycle availability are required.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or Intel® Core™ Tiger Lake UP3 i5-1145G7E (with vPro)
• 19.0" display with 1280 x 1024 resolution
• Multi-display support: DP / HDMI / LVDS / eDP panel interface
• Multiple I/Os including serial ports and USB 3.2 ports
• 12V single-voltage DC power input

Product details

• Display size: 19.0 inches
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch function (optional)
• Resolution: 1280 x 1024
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• Viewing angles: 85 / 85 / 80 / 80
• Active area: 376.32 x 301.06 mm

System specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet controllers
• Security: TPM 2.0
• Operating system: Windows 11 IoT Enterprise (64-bit) (optional), Windows 11 Pro 64-bit (optional), Linux Ubuntu 22.04 (optional; does not support Wake on Touch)
• WLAN / Bluetooth: supported as optional modules

Mechanical

• Dimensions: 482 x 399 x 80 mm
• Weight: 6.9 kg
• Mounting: VESA mount (default); Rack mount (7U) optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certifications

• CE
• FCC

I/O ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Video: 1 x DP 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi-Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators / Controls: LED for power; LED for storage; 1 x brightness adjustment knob; 1 x power button; 1 x reset button
• Power input: 1 x 12V DC Din4 pin connector

Accessories & Power

• Included / available accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Power rating: 12V DC with 12V 120W adapter (example adapter spec)

Use cases & highlights
Ideal for server room applications, machine control, operator consoles and factory automation where a rugged, rack-mountable display-computer with multi-display support and extensive peripheral connectivity is required.

Caractéristiques / spécifications techniques

• Model: R19IT7T-RKM1
• Display: 19.0", 1280x1024, 250 nits
• CPU options: Intel® Core™ i5-1135G7 / i5-1145G7E
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage: NVMe M.2 + optional 2.5" SATA; default 128 GB SSD
• LAN: 1 x 1GbE + 1 x 2.5GbE
• Serial: RS232/422/485 + RS232
• USB: 4 x USB 3.2 Gen
• Video outputs: DP1.4 (default), HDMI2.0 (optional)
• Power input: 12V DC (Din4)
• Dimensions / Weight: 482 x 399 x 80 mm / 6.9 kg
• Mounting: VESA (default), Rack mount (7U) optional
• Certifications: CE, FCC
