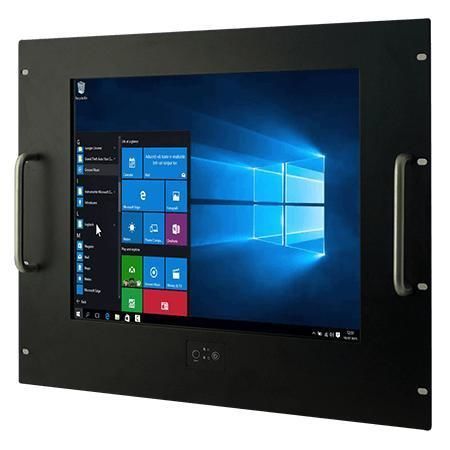

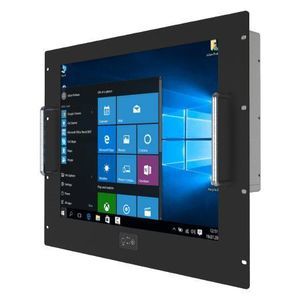

Resistive touch screen panel PC R19IP7T-RKM1

19"Intel® Pentium® N42001280 x 1024

Overview
Winmate R19IP7T-RKM1 is a 19" rack-mount panel PC powered by an Intel® Pentium® N4200, engineered for machine control, factory automation and operator HMI. The fanless metal enclosure and drawer-style rack design enable compact, vibration‑resistant integration into rack and OEM systems while supporting long lifecycle availability.

Key Features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• 19.0" display, 1280 x 1024 resolution, 250 nits; resistive touch or protection glass options
• Flexible storage: M.2 2242, 1 x 2.5" SATA bay; 128 GB SSD default (options up to 1 TB)
• Multiple I/O: 4 x USB 3.0, 2 x Gigabit LAN, 2 x serial ports (RS232/422/485 configurable)
• Video outputs: DP1.2 (4096 x 2160 @60Hz), HDMI1.4 (3840 x 2160 @30Hz) and optional VGA
• 12V DC input (Din4), TPM 2.0 and optional WLAN/BT modules

Integration and Use
Designed for rack and embedded applications, the R19IP7T-RKM1 supports VESA or optional 7U rack mounting and offers straightforward connection to embedded boards via DP/HDMI/VGA. The pull-out drawer housing improves serviceability and shock protection for server-room or cabinet deployments. Suitable for OEM integration, HMI consoles and industrial visualization.

Certifications

• CE
• FCC

Technical Specifications

• Model: R19IP7T-RKM1
• Display: 19.0"; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 376.32 x 301.06 mm
• Touch/Glass: Resistive touch (optional) or protection glass (optional)
• CPU: Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO‑DIMM (non‑ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 1 x M.2 2242 B‑Key (SATA); 2 x SATA III for 2.5" SSD/HDD (optional, RAID support)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232 (configurable)
• USB: 4 x USB3.2 Gen1 (Type‑A)
• Video: 1 x DP1.2 (default); 1 x HDMI1.4 (optional); 1 x VGA (optional)
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: 1 x PCIe 2.0 x1 (optional); 1 x M.2 2230 E‑Key for Wi‑Fi
• Security: TPM 2.0
• Power: 1 x 12V DC (Din4); adapter 12V 84W (as configured)
• Dimensions: 482 x 399 x 80 mm; Weight: 6.9 kg
• Mounting: VESA mount (standard); Rack mount (7U) optional
• Enclosure: Metal housing; Cooling: fanless
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10%–90% RH non‑condensing
• Indicators / Controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Accessories: AC/DC adapter (100~240V to 12V), power cord, VESA screws, manual
