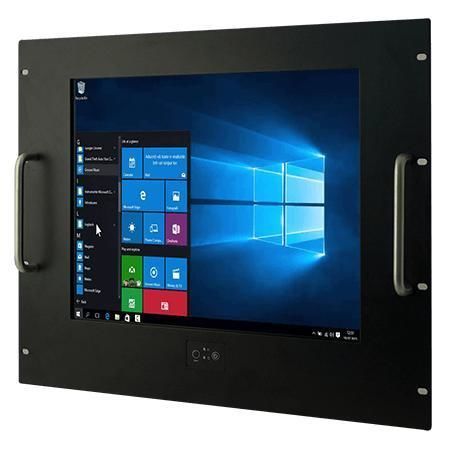

Resistive touch screen panel PC R15IP7T-RKC3

LCD15"Intel® Pentium® N4200

Overview
The R15IP7T-RKC3 is a 15-inch rack-mount panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI, it features a fanless metal housing, flexible storage and multiple I/O for reliable integration in rack, console and embedded industrial applications.

Key features

• Intel® Pentium® N4200 processor (1.10 GHz, burst up to 2.5 GHz)
• 15.0" display, 1024 x 768 resolution, 300 nits brightness
• Flexible storage: M.2 2242, 2.5" SATA bay, default 128 GB SSD (options up to 1 TB)
• Rich I/O: 2 x Gigabit LAN, 2 serial ports (RS232/422/485 options), 4 x USB 3.0 (Type-A)
• Display outputs: DisplayPort 1.2 (DP default), HDMI 1.4 / VGA optional
• 12 V DC input (Din4 connector), TPM 2.0, fanless metal enclosure

Certifications

• CE
• FCC

Product details
Video interfaces include DisplayPort by default with optional HDMI or VGA for straightforward integration with embedded boards and rack systems. Touch options include resistive touchscreen or protection glass without touch. Short-depth chassis and pull-out drawer design simplify rack installation and service access, making the unit suitable for server-room consoles, industrial racks and space-constrained control cabinets.

Technical specifications

• Model: R15IP7T-RKC3
• Brand: Winmate
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1 contrast, active area 304.1 x 228.1 mm
• Touch / Glass: Resistive touch (optional) or Protection Glass (optional)
• CPU: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz, 2 MB cache)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; 256/512 GB / 1 TB options; 2 x SATA III for 2.5" SSD/HDD (optional, RAID support)
• M.2: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key (Wi‑Fi)
• Ethernet: 2 x Intel® Gigabit Ethernet (I210-AT)
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise (64-bit) / Linux (Ubuntu variants)
• WLAN / Bluetooth: Optional via M.2
• I/O & Audio: 4 x USB3.2 Gen1 (Type-A), serial ports (RS232/422/485 options), 1 x Mic in, 1 x Line out, 2 x speaker
• Expansion: 1 x PCIe 2.0 x1 (optional)
• Mechanical: 482 x 310 x 67 mm; weight ~4.2 kg; metal housing; VESA mount (default); Rack mount (7U) optional
• Power: 1 x 12 V DC (Din4), adapter example 12 V 50 W
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• Indicators & Controls: Power LED, storage LED, brightness knob, power/reset buttons
