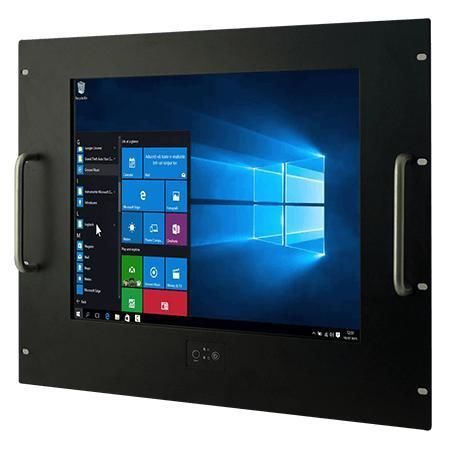

Resistive touch screen panel PC R17IP7T-RKM1

LCD17"Intel® Pentium® N4200

Summary
The Winmate R17IP7T-RKM1 is a 17-inch rack mount panel PC engineered for machine control, factory automation and operator HMI applications. Equipped with an Intel® Pentium® N4200 processor and a fanless metal enclosure, it targets industrial buyers, OEMs and system integrators needing stable hardware and long lifecycle availability.

Key Features

• Intel® Pentium® N4200 (Apollo Lake) 1.10 GHz, burst up to 2.5 GHz
• Flexible storage: 1 x M.2 2242 SSD (default) and optional 2 x SATA III for 2.5" SSD/HDD
• Multiple I/O: 2 x serial, 4 x USB 3.0, 2 x Gigabit LAN
• 12 V DC power input (Din4 pin)
• Display outputs: DP up to 4096 x 2160 @ 60 Hz; HDMI up to 3840 x 2160 @ 30 Hz (optional)

Overview
Standard video interfaces (DP/HDMI/VGA) simplify integration with embedded boards and industrial systems. Optional resistive touchscreen or protective glass supports operator control on racks and consoles. The pull-out drawer style and metal housing protect internal components and enable space-saving rack and vertical-surface mounting for server room visualization and control.

Certifications

• CE
• FCC

Technical specifications

• Model: R17IP7T-RKM1
• Brand: Winmate
• Display Size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Active Area: 337.920 x 270.336 mm
• Processor: Intel® Pentium® N4200 (1.1 GHz base, up to 2.5 GHz)
• Memory: 2 x SO-DIMM DDR3L 1866 MHz; 4 GB default; 8 GB optional
• Storage: 1 x M.2 2242 SSD 128 GB (default); optional 256/512 GB; optional 2 x SATA III for 2.5" SSD/HDD
• Ethernet controller: 2 x Intel® Ethernet Controller (I210-AT)
• Security: TPM 2.0
• Operating System (optional): Windows 10 IoT Enterprise (64-bit); Linux Ubuntu (18.04 / 20.04)
• WLAN/BT: optional support via M.2 2230 E-Key
• Mechanical Dimensions: 482.6 x 354.8 x 83 mm
• Weight: 5.9 kg
• Mounting: VESA mount; Rack mount (9U)
• Enclosure: Metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -10 °C to 60 °C
• IO Ports — USB: 4 x USB3.2 Gen1x1 (Type-A)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232); 1 x RS232 (additional)
• IO Ports — LAN: 2 x Gigabit LAN RJ45
• IO Ports — Video: 1 x DP1.2 (default) supporting 4096 x 2160 @ 60 Hz; 1 x HDMI 1.4 (optional) supporting up to 3840 x 2160 @ 30 Hz; 1 x VGA (optional)
• IO Ports — Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion Ports: 1 x M.2 2242 B-key (SATA SSD); 1 x M.2 2230 E-key (Wi‑Fi); 1 x PCIe 2.0 x1 (optional)
• Indicators: 1 x LED for power; 1 x LED for storage
• Brightness Control: 1 x Brightness adjustment knob
• Power Input: 1 x 12 V DC (Din4 pin connector)
• Power Rating / Adapter: 12 V DC; adapter 12 V 84 W
• Control Buttons: 1 x Power button; 1 x Reset button
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws; driver CD & manual (where provided)
