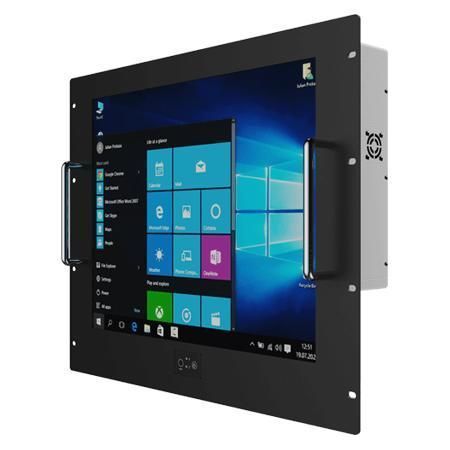

Resistive touch screen panel PC R19IAD7T-RKA1

19"Intel® Core i3Intel® Core i5

Overview
Winmate R19IAD7T-RKA1 is a 19-inch rack-mount panel PC powered by Intel® Core™ i9/i7/i5/i3 (Alder Lake S) processors. It is engineered for machine control, factory automation and operator HMI, offering DDR5 memory, NVMe storage options, integrated dual 2.5 Gbps Ethernet and flexible video outputs for embedded and rack environments.

Key features

• 19" 1280×1024 display with optional resistive touch or protection glass
• 12th / selected 14th Gen Intel® Core™ processors (i3–i9 options)
• 2× SO-DIMM DDR5-4800, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet and 4× USB 3.2 Gen2
• Multi-display support: DP1.4a (default) and HDMI 2.0b (optional)
• 12V DC power input; M.2 NVMe and SATA storage options

Product details
DP/HDMI/VGA interfaces simplify integration with embedded boards and control systems. Optional resistive touchscreen or protection glass variants support operator workflows. Metal enclosure with pull-out drawer and fan cooling is suitable for rack, server-room and console installations; mounting options include VESA, wall or shelf mounting.

Certifications

• CE
• FCC

Technical specifications

• Model: R19IAD7T-RKA1
• Display: 19.0 inches, 1280×1024, 250 nits, contrast 1000:1, view angles 85/85/80/80
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Processor options: i3-12100TE (default); i5-12500TE; i7-12700TE; i9-12900TE; and listed T-series variants
• Chipset: Intel® R680E
• Memory: 2× non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD (default); optional 256GB–4TB; 1× M.2 2280 NVMe; 2× SATA III for 2.5" drives (RAID optional)
• LAN: 2× Intel® 2.5 Gbps RJ45
• USB/Serial/Audio: 4× USB 3.2 Gen2; 1× RS232/422/485 (default RS232); 1× RS232; Mic-in, Line-out
• Video: DP1.4a (up to 4096×2160@60Hz), HDMI 2.0b optional
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key (Wi‑Fi)
• Power: 12V DC (Din4), adapter 12V 220W
• Mechanical: 482×399×89 mm; weight 6.9 kg; metal housing; fan cooling
• Mounting: VESA (default); Rack mount (9U) optional
• Environment: Operating 0°C–50°C; 10%–90% RH non-condensing; storage -10°C–60°C
