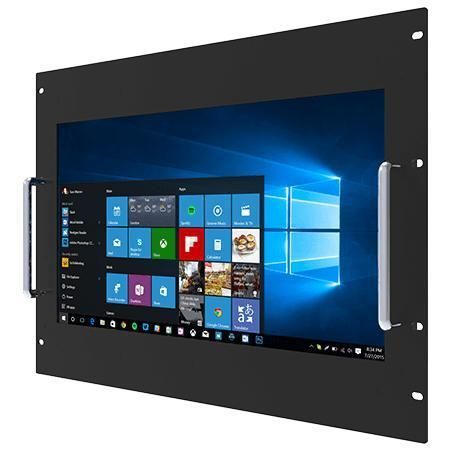

Resistive touch screen panel PC W18IAD3S-RKA1

18.5"Intel® Core i5-1235U1920 x 1080

Overview
Winmate W18IAD3S-RKA1 is an 18.5-inch rack-mount Panel PC powered by Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI. It is aimed at industrial buyers, OEMs and system integrators requiring long lifecycle availability and industrial-grade connectivity.

Highlights / Key Features

• 18.5" 1920 x 1080 rack-mount panel PC
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz (supports up to 32GB)
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/Os: 2 x USB 3.2 Gen2x1, serial ports, HDMI/VGA
• 12 V DC power input; fanless design

Product Details / Functional Description

• Display interfaces: HDMI and VGA for integration with embedded boards and rack systems
• Touch options: resistive touch (optional) or protection glass without touch function (optional)
• Operator convenience: brightness adjustment knob, integrated speakers, power and storage LEDs
• Mechanical design: metal enclosure with pull-out drawer, suitable for 8U rack mounting, wall or shelf installation
• Expansion: 1 x M.2 2280 M-Key for NVMe SSD; 1 x M.2 2230 E-Key for Wi‑Fi module

Certifications

• CE
• FCC

Technical Specifications

• Display: 18.5" 1920 x 1080, 350 nits, 1000:1
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; optional 16GB, 32GB (1 x SODIMM DDR5 4800MHz)
• Storage: 128GB SSD default; options 256GB–4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x 2.5 GbE (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• Ports: 2 x USB 3.2 Gen2x1, 1 x RS232/422/485 (default RS232) + 1 x RS232, 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers; indicators: power and storage LEDs; brightness knob
• Power: 1 x 12V DC (2.5φ jack); adapter 12V 120W
• Dimensions / Weight: 483 x 355 x 73 mm / 5.9 kg
• Mounting: Rack mount (8U)
• Operating conditions: 0°C to 50°C; 10%–90% RH (non-condensing)
