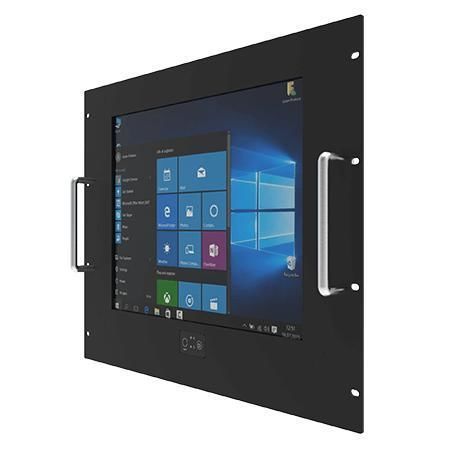

Resistive touch screen panel PC R17IT7T-RKM1

17"Intel® Core i51280 x 1024

Overview
The Winmate R17IT7T-RKM1 is a 17" rack-mount panel PC powered by Intel® Core™ Tiger Lake i5 processors. Engineered for machine control, factory automation and operator HMI in industrial and server-room environments, it provides a fanless design, metal housing and flexible I/O and expansion options for long-term integration.

Key Features

• Intel® Core™ Tiger Lake UP3 i5 options (i5-1135G7 / i5-1145G7E with vPro)
• 17.0" display, 1280 x 1024 resolution, 350 nits
• Multi-display support: DP / HDMI / LVDS / eDP
• Rich I/O: serial ports, 4 x USB 3.2 Type-A, Gigabit and 2.5G LAN
• 12V single-voltage DC input; 12V 120W adapter option
• Fanless operation, metal enclosure, VESA or 9U rack-mount options

Product Description
The R17IT7T-RKM1 is designed for easy integration into racks, control cabinets and operator consoles. It supports resistive touchscreen or protection glass, wide storage and memory configurations, integrated TPM 2.0 and multiple expansion slots (M.2, PCIe). Typical uses include machine-level control, server-room visualization, operator workstations and industrial HMI systems where reliable, low-maintenance operation is required.

Technical Specifications

• Model: R17IT7T-RKM1
• Brand: Winmate
• Display Size: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 337.920 x 270.336 mm
• Touch / Glass: Resistive touch (optional); Protection glass (optional)
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz up to 4.2 GHz); optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 / 2 / 4 TB; 1 x SATA III for 2.5" HDD/SSD (optional)
• Ethernet: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45)
• USB: 4 x USB 3.2 Gen (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video outputs: 1 x DisplayPort 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: Optional via M.2 Wi‑Fi module
• Dimensions: 482.6 x 399 x 83 mm; Weight: 5.9 kg
• Mounting: VESA mount (default); Rack mount (9U) optional
• Enclosure: Metal housing; Cooling: Fanless
• Power input: 1 x 12V DC (Din4 pin); Adapter: 12V 120W (optional); Accessories: 100–240V AC to DC adapter, power cord, VESA screws
• Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
