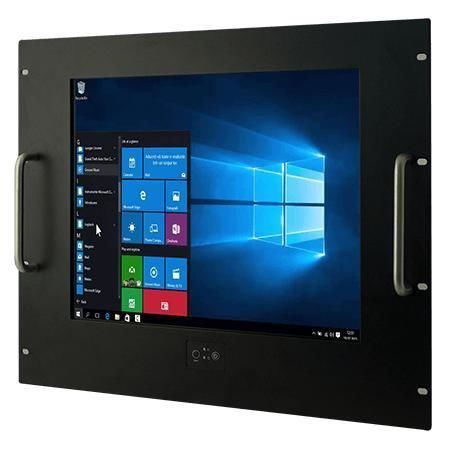

Resistive touch screen panel PC R15IT7T-RKC3

15"Intel® Core i5Intel® Tiger Lake-U

Overview
Winmate R15IT7T-RKC3 is a 15-inch rackmount panel PC based on Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI in industrial and embedded environments. It features a fanless metal enclosure and options for resistive touch or protection glass.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
• 1024 x 768 resolution, 300 nits, 2000:1 contrast
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/Os including 4 x USB 3.2 Gen2 Type-A, serial ports and dual Intel Ethernet
• 12V DC single-voltage input; fanless operation

System and storage

• Processor: Intel Core i5-1135G7 (2.4GHz, up to 4.2GHz); i5-1145G7E option (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per slot)
• Storage: 128GB SSD default; options up to 4TB; 1 x SATA III for 2.5" SSD/HDD (optional); M.2 2280 (NVMe)
• Security: TPM 2.0; optional WLAN/Bluetooth via M.2 2230 E-Key
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Wake on Touch not supported)

Display

• Size: 15.0 inches
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Resolution: 1024 x 768; Brightness: 300 nits; Contrast: 2000:1; View angles: 88/88/88/88; Active area: 304.1 x 228.1 mm

Mechanical

• Dimensions: 482 x 310 x 67 mm
• Weight: 4.2 kg
• Mounting: VESA mount (default); Rack mount (7U) optional
• Enclosure: Metal housing; Fanless cooling

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

Certifications

• CE
• FCC

Interfaces / I/O

• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators / Controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input: 12V DC (Din4 pin); adapter 12V 120W

Accessories & power

• Included / recommended: 100~240V AC to 12V DC adapter, power cord, VESA screws
• Power rating: 12V DC; adapter 12V 120W (option)

Recommended applications

• Machine control and PLC interfaces
• Operator HMI in rack-mounted installations and server rooms
• OEM integration and embedded systems requiring long lifecycle availability

Model / Technical specifications

• Model: R15IT7T-RKC3
• Brand: Winmate
• Display: 15.0", 1024 x 768, 300 nits
• CPU: Intel Core i5-1135G7 (up to 4.2GHz)
• Memory: up to 64GB (2 x SO-DIMM)
• Storage: 128GB SSD default; options to 4TB; M.2 NVMe + SATA III support
• I/O: USB3.2, serial, DP/HDMI, Gigabit + 2.5GbE
• Dimensions / Weight: 482 x 310 x 67 mm / 4.2 kg
• Certifications: CE, FCC
