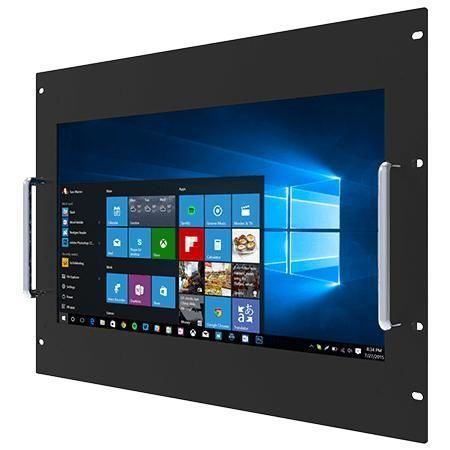

5-wire resistive touch screen panel PC W18IT3S-RKA1

18.5"Intel® Core™ i5-1135G71920 x 1080

Overview
The Winmate W18IT3S-RKA1 is an 18.5-inch rack-mount panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 (11th gen) processor (turbo up to 4.2 GHz), a Full HD 1920 x 1080 18.5-inch display, flexible storage (2.5" HDD bay and M.2/NVMe SSD option), multiple industrial I/O and a 12V DC power input. Target users include industrial buyers, OEMs and system integrators requiring compact, rackable HMI and control solutions.

Key Features

• 18.5" Full HD display (1920 x 1080), 350 nits, 1000:1 contrast
• Intel® Core™ i5-1135G7 processor (11th gen, turbo up to 4.2 GHz)
• Flexible storage: 1 x 2.5" HDD bay + M.2 2280 NVMe slot (SSD options)
• Multiple I/Os: serial ports, 2 x USB3.2 Gen2x1 (Type-A), HDMI/VGA support, 2 x 2.5G LAN
• 12V DC input, fanless metal housing, rack-mountable (8U)

Certifications

• CE
• FCC

Product Highlights / Overview Details
HDMI or VGA video interfaces enable straightforward integration with embedded boards and industrial systems. Intuitive touchscreen operation (resistive touch optional) and protection glass options suit varied installation needs. The rugged metal enclosure with a pull-out drawer design facilitates service and secure rack installation; fanless operation and solid-state storage options enhance reliability in industrial environments.

Design & Integration
Configurable touch options (5-wire resistive) or protection glass only. Designed for rack mounting (8U) and suitable for wall or shelf mounting in compact control rooms and server environments. Expansion via M.2 slots: 2280 M-Key for NVMe SSD and 2230 E-Key for Wi‑Fi module.

Notes
Specifications and available options (memory, storage, OS, WLAN/BT, TPM 2.0) vary by configuration. No contact or purchasing links are included; the description summarizes product features and technical specifications for evaluation by integrators and purchasers.
