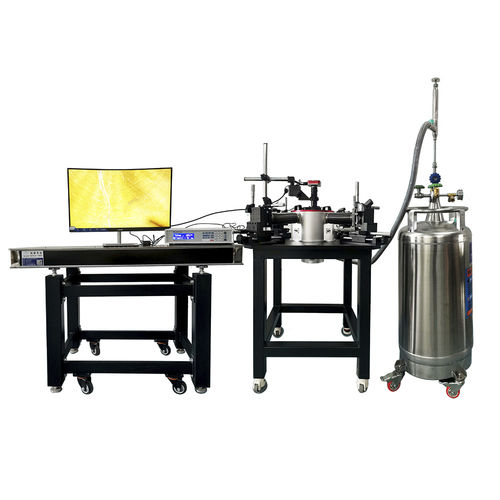

Benchtop probe station DXTPS series

magnetichigh-temperaturevacuum

The high and low temperature vacuum magnetic field probe station is a high-precision experimental platform that provides high and low temperature, vacuum and magnetic field environments, and many of its designs are dedicated. The configuration of the high and low temperature magnetic field probe station is mainly selected and designed according to the needs of users. For example, the required magnetic field value, the size of the uniform area, the size of the uniformity, the size of the sample stage, etc. These parameters are related to the magnetic flux density generated by the magnetic field lines in a certain area; The displacement stage can also be matched with the magnetic fluid seal to realize two-dimensional movement in the horizontal direction and 360-degree rotation of the sample stage; In addition, the combination of the probe station and the high-precision bipolar constant current power supply independently developed by our company enables users to achieve high stability of the magnetic field. The probe station is equipped with 4 (6, 8) probe arms with high-precision displacement, and is equipped with a high-precision electron microscope, which is convenient for the observation operation of tiny samples. The probe can be used to test chips, wafers, packaged devices, etc. through DC or low-frequency AC signals. It is widely used in the semiconductor industry, MEMS, superconductivity, electronics, ferroelectronics, physics, materials science, and biomedicine.
