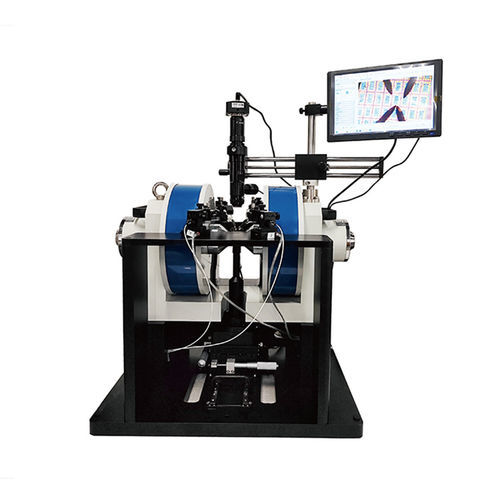

Magnetic probe station DX1PS1

The One-dimensional in-plane Magnetic Field Probe Station DX1PS1 provides controlled in-plane magnetic fields for electrical and microwave measurements on small samples. It integrates real-time magnetic field monitoring and programmable sample rotation to support anisotropy and magnetotransport testing.

Key features

• Delivers uniform in-plane magnetic field suitable for sensitive electrical and microwave measurements
• Real-time field monitoring with high accuracy, fine resolution and feedback control
• Adjustable air gap (0–70 mm) to accommodate different sample setups
• Programmable in-plane rotation (360°) for automated anisotropy and magnetoresistance measurements
• Supports DC and high-frequency measurements: up to 4 DC probe sets and at least 1 microwave probe; needle penetration angle up to 45°

Technical specifications

• Model: DX1PS1
• Magnetic field direction: in-plane
• Maximum magnetic field strength: 1 T @ 20 mm air gap
• Air gap: adjustable, 0–70 mm
• Sample size (max): 30 mm × 30 mm
• DC measurement: up to 4 DC probe sets; 8-pin Bangwire sample holder provided for anomalous Hall and second-harmonic measurements
• High-frequency measurement: at least 1 microwave probe; needle penetration angle up to 45°
• Sample stage: horizontal XY stroke ±15 mm, adjustment sensitivity 1 µm; T-axis: 360° electronically controlled rotation
• Microscope: monocular microscope
• Upgrade option: displacement system can be upgraded to electronic control
