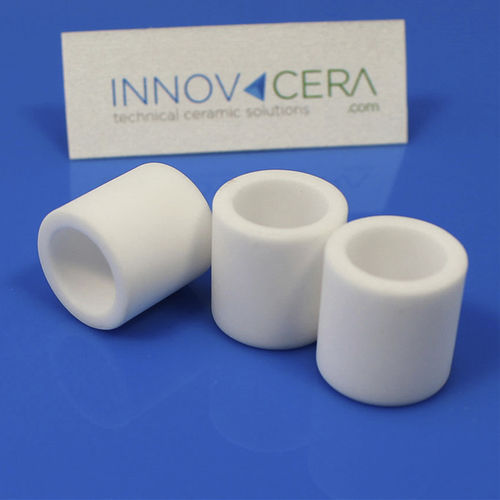

The insulation tube is made from a material with good insulation property, and is mainly used for separating different polarity items of a temperature measuring element, so that the phenomenon that the two poles interfere with each other or are in contact with each other to cause a short circuit is avoided, and temperature is accurately measured.
Stock size of insulation tube:
outer diameter 1mm to 12mm, with single orifice, double, four or more orifices in diameter 0.5mm minimal, maximal length 1600mm, all dimensions can be customized according to user demands.
Technical parameters:
Maximum service temperature: 1800℃
Compressive strength:2500 Mpa
Volume density: 3.95g/cm3
Bending strength :400Mpa
Fracture toughness:5-7
Mohs hardness: 9
