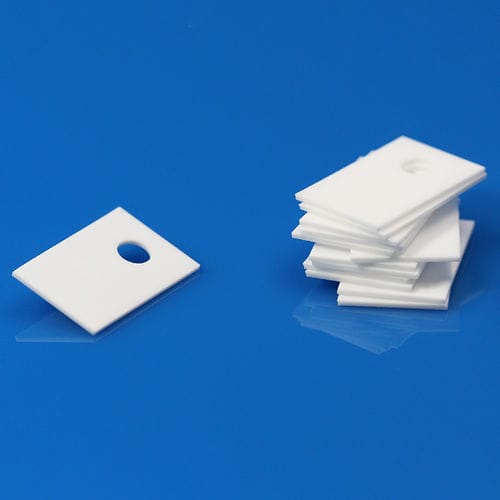

Insulation ceramic TO-220

sheetaluminaaluminum nitride

Innovacera TO-220 Ceramic Insulators were to be mounted between the TO-220 packaged power transistors and the heatsink, its dimensions is 14 x 20 x 1 mm (0.55 x 0.79 x 0.04in), the Mounting hole diameter can be 3.8mm or 5mm, without holes and customized holes is also available. It was packed by 100pcs per bag, TO-220 Ceramic Insulator Cooling Pads is widely used for semiconductor devices, high power equipment, integrated circuit, ICMOS tube, IGBT patch insulation, triode, high frequency power supply communication, mechanical equipment, high current, high voltage, high temperature, insulation parts requiring heat conduction. Compare to conventional mica or silicon pad materials, the ceramic insulators material is more beneficial for MOSFETs mounting such as improve the performance of high frequency because of their high thermal conductivity and high electrical resistance. The ceramic insulators mostly choose the 96% alumina and aluminum nitride ceramics material. TO-220 Ceramic Insulator Cooling Pads also called as Ceramic Heat Spreader, it is resistant to high temperature and pressure. The surface of the ceramic insulator sheet is smooth, without burrs and burrs. It can Heat evenly, rapid heat dissipation, it is not easy to break, acid and alkali corrosion resistance, durable and so on advantages. Below is the drawing of TO-220 and other customzied TO package ceramic insulators we can make.
