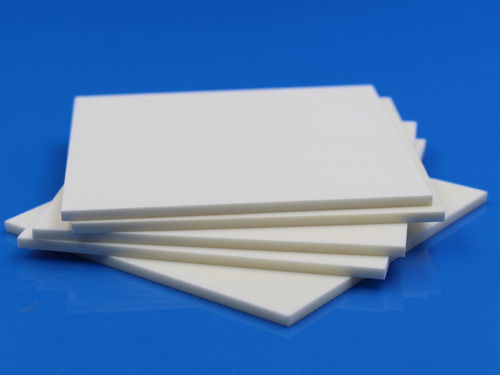

Plate aluminum nitride

Innovacera manufactures ceramic setter plates for high demands on geometry and material quality for your components. The setter plate is widely used for sintering and debinding of metal injection molding, ceramic injection molding, piezoelectric ceramic transducer (PZT), or Solid Oxide Fuel Cell (SOFC) products. As setter plates, alumina, boron nitride, and aluminum nitride ceramics offer decisive advantages over conventional setters made from materials like graphite or tungsten. This enables energy and cost-efficient processing of high-precision sintering components. Ceramic sintering tray and setter plates assist optimally in arraying and fixing molded parts in a sintering furnace to prevent brown part deformations during the firing process. Properties of Ceramic Setter Plate - dust-free and particle-free surface - homogeneous pore size distribution - good mechanical strength with high porosity - easy machinable, big customized dimensions of the setter possible - very good planarity and surface quality - homogenous shrinking through unimpeded shrinkage - absorption of the binder into the pores during the debonding process Aluminum Oxide (Al2O3) ceramic setter plate - Lower cost and it is the most popular ceramic setter plate for Metal Injection Molding, with a max service temperature of up to 1600°C (in air). Boron Nitride (HBN) ceramic setter plate - Soft like graphite called “white graphite”, medium cost, long service lifetime, and used as a setter plate for sintering high temperatures up to 2100°C (Insert Gas). Aluminum Nitride (AlN) ceramic setter plate - AlN ceramics is the basis for low lateral temperature differences and results in homogeneous thermal distribution within the sintering components. The setter plate’s maximum dimensions, such as 350 x 350 mm, enable a high packing density. These setter plates can be stacked with integrated cavities on request thereby ensuring fast, effective sintering furnace charging. This makes optimal use of furnace volume and energy expenditure, which results in a fully energetically optimized sintering process. - Brand: INNOVACERA - Product: Ceramic Setter Plate - Applications: Sintering and debinding of MIM, CIM, PZT, SOFC - Material options: Aluminum Oxide (Al2O3), Boron Nitride (HBN), Aluminum Nitride (AlN) - Max dimensions: 350 x 350 mm - Max service temperature: up to 2100°C (depending on material) - Custom sizes available
