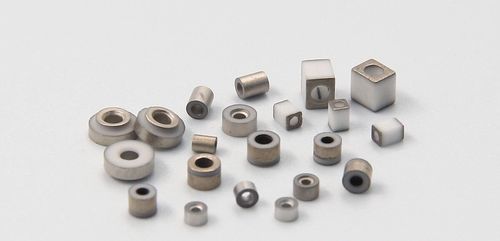

Metallized ceramic insulator

INNOVACERA’s metallized ceramic insulators are made by ceramic combined with thick metal films through a metallization process. This combination of ceramic and metal results in insulators that can withstand harsh conditions and provide electrical isolation when needed. - Metallization Spec.: - Molybdenum/Manganese (Mo/Mn) metallization: 9-30μm - Ni plating thickness: 3-10μm - Metallized Ceramic Insulators Material Properties: 1. Purity: ≥95% 2. Volume density: ≥3.6 g/cm3 3. Water absorption: 0% 4. Thermal conductivity: 22.4 W/m·K (25℃) 5. Coefficient of thermal expansion: 8.2 X(10-6)/℃ (20-1000℃) 6. Flexural strength: 340 MPa 7. Compressive strength: 2103 MPa 8. Tensile strength: 193 MPa 9. Hardness: ROCKWELL 45N, 78 10. Withstand voltage: 8.3 KVac/mm 11. Dielectric constant: 9.1 (@1MHz) 12. Dielectric loss angle: 0.0004 (@1MHz) 13. Volume resistivity: 1×10-14 (@25℃), 4×10-9 (@500℃), 5×105 (@1000℃) - Metallized Ceramic Insulators Features: - The ceramic material is with even texture, each batch has stability quality and flexural strength. - Metal layer is dense, constant, smooth and good weldability. - Excellent electrical insulation, low dielectric constant, good abrasion, and corrosion resistance. - High tensile strength, good airtightness to meet the requirement of the high-frequency, high-power and safe electrical components. - Metallized Ceramic Insulators Application: - Semiconductor packaging - TO packaging - Fiber optic device shell - Laser Shell - Vacuum electronic devices - LED accessories etc.
