Tubular ceramic IN-CM-400 series

insulation

Product overview
Metallized ceramic bushings from the IN-CM-400 series are designed for reliable ceramic-to-metal joining and insulated feedthrough applications. The metallized surface enables brazing and hermetic sealing with metal components. INNOVACERA supplies standard parts as well as custom shapes and sizes to meet specific industrial requirements.

Capabilities

• Metallization for joining ceramics to metals
• Brazing capabilities for ceramic-to-metal assemblies
• One-stop service from ceramics to brazed components
• Finished hermetically sealed ceramic terminals available for assembly

Designs and illustrations

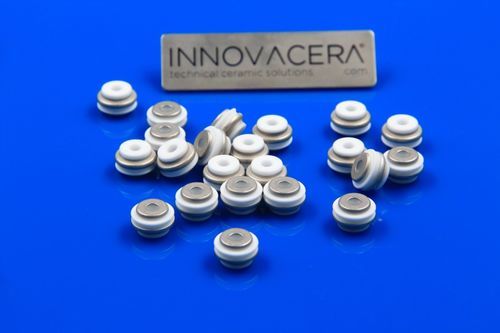

Product page includes design illustrations and multiple product images showing metallized ceramic bushings and examples of ceramic-to-metal assembly designs for feedthroughs and hermetic terminals.

Parts and Dimensions (table)
Part # | D | A | J
IN-CM-400 | 0.494 | 0.143 | 0.309
IN-CM-400-1 | 0.494 | 0.169 | 0.309
IN-CM-400-1M | 0.494 | 0.228 | 0.309
IN-CM-400-2 | 0.562 | 0.200 | 0.375
IN-CM-400-2M | 0.562 | 0.250 | 0.375
IN-CM-400-3 | 0.619 | 0.260 | 0.403
IN-CM-400-4 | 1.000 | 0.320 | 0.500
IN-CM-400-5 | 0.994 | 0.447 | 0.497
IN-CM-400-6 | 0.556 | 0.200 | 0.372
IN-CM-400-7 | 1.050 | 0.510 | 0.497
IN-CM-400-8 | 0.744 | 0.265 | 0.372
IN-CM-400-8-1 | 0.744 | 0.302 | 0.372
IN-CM-400-8-2 | 0.750 | 0.344 | 0.375
IN-CM-400-9 | 0.994 | 0.382 | 0.497
IN-CM-400-9-1 | 0.994 | 0.382 | 0.497
IN-CM-400-10 | 1.750 | 0.760 | 0.625
IN-CM-400-12 | 0.556 | 0.200 | 0.278
IN-CM-400-14 | 0.562 | 0.260 | 0.375

Technical specifications

• Material: Technical ceramic with metallized surface for joining to metal
• Applications: Ceramic-to-metal joining, insulated feedthroughs, hermetic terminals
• Manufacturing capabilities: Metallization processing, brazing and assembly into finished hermetically sealed components
• Customization: Many custom shapes and sizes available
• Part series: IN-CM-400 series (multiple variant part numbers with specified D, A, J dimensions)
