22 mm planetary gear motor - The gear motors are available in 2-, 3- and 4-stage versions, and gear ratios range from 19:1 up to 809:1. Currently nine different gear ratios in 12V and 24V versions are in stock, ready to ship. With these versions, torque values of 150 to 800 mNm can be achieved. The gears are made entirely of plastic and run very smoothly.
|
|
Planetary Gearheads
Noiseless, gearheads with maximum noise reduction Focus, with minimum circumferential backlash
Performax®, the milestone in gear engineering (patent pending) with its high performance and extreme smoothness
Performax® High Radial Load, the downstream development from the Performax® series for major radial loads and smoothness not restricted
by radial loads
|
|
|
Geared motor with bs series brushless servomotor, integrated with precision planetary 1-2 stage reduction unit. Reduced backlash available on reguest.
|
|
Planetary motor reducers dia. 38 with 110mm
Tension 12 or 24VCC
Acceptable couple 2,9 to 200 Nm
Speeds from 2 to 700 rpm - 1 with trains
Strong points:
- Robust Construction
- Capacity of high overload
- Reduced noise Level
- Optimal Lifespan
- Quality ratio/prices Excels
|
|
ASTRO synchronous geared motor with planetary gear ASM PG
|
|
Planetary Gearheads
Noiseless, gearheads with maximum noise reduction Focus, with minimum circumferential backlash
Performax®, the milestone in gear engineering (patent pending) with its high performance and extreme smoothness
Performax® High Radial Load, the downstream development from the Performax® series for major radial loads and smoothness not restricted
by radial loads
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With die-cast aluminium casing in the first stage (worm) and steel casing in the second stage, which is planetary with three internal planetary gears. Wheel rim in special bronze 110 HB hardness. Worm gears in hardened steel with grinding threads rotating on ball and roller bearings. Lubrication with special long-lasting oil. Sealing rings made in special rubber for high temperatures.
9 gear ratios (i) available, from 37,5 to 400. Rated torque 23,5 Nm. Version B3 or B5. B5/S left version - B5/D right version.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With die-cast aluminium casing in the first stage (worm) and steel casing in the second stage, which is planetary with three internal planetary gears. Wheel rim in special bronze 120-160 HB hardness. Worm gears in hardened steel with grinding threads rotating on ball and roller bearings. Lubrication with special long-lasting oil.
Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 33,25 to 475. Rated torque 90 Nm. Version B3 or B5. B5/S left version - B5/D right version.
|
|
|
|
|
|

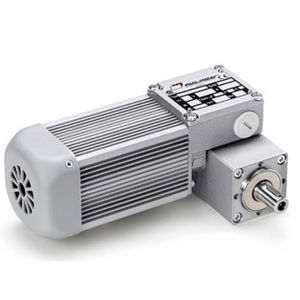

BCE2000
MOTOR: Asynchronous-single and three-phase-2 pole. Enclosed with external ventilation. Safety thermal cutout. Class F winding according to VDE0530 standards. Insulation IP65 according to CEI EN 60529 standard.
GEAR UNIT: With die-cast aluminium case in first reduction stage with worm screw and in steel in second planetary reduction stage with three internal planetary gears. Centre distance 20 mm. Bronze ring with hardness 110 HB. The screw is made of hardened steel with ground thread. The grommets are made of fluoridised polymer (FPM). Lubrication with synthetic oil (EP). 6 reduction gear ratios are available: 50/75/125/225/300/400. Maximum rated torque is 14,4 Nm. Manufacture B3/14.
BCE2000 12/24MP
MOTOR: Direct current with permanent magnets, enclosed. Class F winding according to VDE0530 standards. 12 or 24 Vdc. Absorbed power 60 W.
Insulation IP65 according to DIN40050 standard.
GEAR UNIT: With die-cast aluminium case in first reduction stage with worm screw and in steel in second planetary reduction stage with three internal planetary gears. Centre distance 20 mm. Bronze ring with hardness 110 HB. The screw is made of hardened steel with ground thread. The grommets are made of fluoridised polymer (FPM). Lubrication with synthetic oil (EP). 6 reduction gear ratios are available: 50/75/125/225/300/400. Maximum rated torque is 15 Nm. Manufacture B3/
B14.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation.
Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: First stage with die-cast aluminium case, second stage in steel. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long-lasting oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 37 to 2209.5. Rated torque 23.5 Nm.
Version B3 or B5.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With die-cast aluminium casing in the first stage (worm) and steel casing in the second stage, which is planetary with three internal planetary gears. Wheel rim in special bronze 120-160 HB hardness. Worm gears in hardened steel with grinding threads rotating on ball and roller bearings. Lubrication with special long-lasting oil.
Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 33,25 to 475. Rated torque 90 Nm. Version B3 or B5. B5/S left version - B5/D right version.
|
|
Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 16 finely spaced frame sizes, spanning over the 1.000 - 450.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.
|
|
ROTEK planetary gears -- perfect performance and stableness
High efficient - compact design
Our planetary gears are characterized by their optimum performance to size ratio and durability. The simultaneous direct intervention of three planetary gears per stage supports the handling of extreme forces within a small footprint.
Robust, maintenance free and versatile, these gears are predestined for really demanding applications. The excellent performance to size ratio gives customers an extremely compact and efficient drive unit in combination with our synchronous motors.
Benefits
> high torque within a small footprint
> high impact resilience
> excellent size to power ratio
Charateristics
> concentric output shaft
> low backlash
> maintenance free
Options
> Low-noise version
> Customized shafts and flanges
> IP53 protected
> special lubrication
|
|
ROTEK planetary gears -- perfect performance and stableness
High efficient - compact design
Our planetary gears are characterized by their optimum performance to size ratio and durability. The simultaneous direct intervention of three planetary gears per stage supports the handling of extreme forces within a small footprint.
Robust, maintenance free and versatile, these gears are predestined for really demanding applications. The excellent performance to size ratio gives customers an extremely compact and efficient drive unit in combination with our synchronous motors.
Benefits
> high torque within a small footprint
> high impact resilience
> excellent size to power ratio
Charateristics
> concentric output shaft
> low backlash
> maintenance free
Options
> Low-noise version
> Customized shafts and flanges
> IP53 protected
> special lubrication
|
|
ROTEK planetary gears -- perfect performance and stableness
High efficient - compact design
Our planetary gears are characterized by their optimum performance to size ratio and durability. The simultaneous direct intervention of three planetary gears per stage supports the handling of extreme forces within a small footprint.
Robust, maintenance free and versatile, these gears are predestined for really demanding applications. The excellent performance to size ratio gives customers an extremely compact and efficient drive unit in combination with our synchronous motors.
Benefits
> high torque within a small footprint
> high impact resilience
> excellent size to power ratio
Charateristics
> concentric output shaft
> low backlash
> maintenance free
Options
> Low-noise version
> Customized shafts and flanges
> IP53 protected
> special lubrication
|
|
Gear motor with worm screw and standard motor Ø 37x34 24 Vdc 5000 RPM output W, with noise suppressor.
Driving shaft mounted on two bearing and bushing. Outlet shaft supported by two bearings.
Design to give low RPM in little dimension
* The rotation speed can change of ± 10%.
The S1 load test was made using a 0,8 A corrent in the air with an increase of temperature of 70 C°
The S2 load test was made using a 1,5 A corrent in the air with a timing 5' ON 5' OFF with an increase of temperature
of 80 C° max
The starting corrent is 4 A and cannot be maintained for more than 2"
Max forces wich may act on the outlet shaft: Axial 25 kg, Radial 40 kg
It is possible to apply an encoder.
|
|
Length "L" of the gearmotor as a funtion of reduction and outlet number of revolution with the standard motor 763 60 output W 3400 Rpm loadness, 24 Vdc. Outlet shaft is supported by two coupled screened bearings.
The motor has an electrical suppressor system for the CE standard.
The motor and the reduction gear are both plated for corrosion strength.
Connecting 2 wire 0,75 x 250 mm.
* The speed rotation can change of ± 10%.
The S1 load test was made using a 1,9 A corrent in the air with an increase of temperature of 70° C.
The S2 load test was made using a 3.6 A corrent in the air with a timing 5` ON 5` OFF with an increase of temperature
of 80° C max. The starting corrent is 14 A and cannot be mantained for more than 2".
Max forces which may act on the outlet shaft: Axial 30 kg, Radial 40 kg on the extremity of outlet shaft.
It is possible to apply an encoder.
|
|
MSF/MSF combined worm gear motors
Worm gear speed reducers type SF-MSF are a new generation of products developed by our company.
|
|
ABM helical geared motors, shaft mounted helical motors and planetary back geared motors give added power to the motor torque and reduce the speed to the necessary level. Helical geared motors and shaft mounted helical motors are those most widely used in industrial applications.
These ABM drive units are particularly known for their:
energy saving of 98% efficiency at each stage
economy due to favourable cost/performance ratio
rugged and practically maintenance-free
environment friendly drive type (compared with internal combustion engine, hydraulics, pneumatics)
The high-quality helical gearing with polished tooth profiles guarantee complete smoothness of operation and accurate power transmission.
ABM Planetary Geared Motors
drive torque up to 700 Nm
reduction ratios, single stage up to i = 12
all further details upon enquiry
|
|
SEW-Eurodrive's P-Series combination planetary gearmotor offers high power density in the high power range. Inline co-axial and right angle configurations add design flexibility.
- Standard Features
Manufactured in plants certified ISO 9001:2000
International product support available through technical sales offices worldwide
Case hardened, spur steel gears are finished to AGMA 12 (ISO 6, DIN 6)
High capacity anti-friction bearings selected for extended life and trouble-free service
Gray cast iron housings; splash and pressure lube; modular construction
Fast delivery
-Mounting Configurations
Co-axial, right angle, foot mounted and flange mounted
Horizontal, vertical
Solid shaft or shrink disc, torque arm
C-face and V-belt motor mounts
Output mounting flanges
|
|
| ... products without technical information |
| |
DC Planetary Electric micro gearmotor
Diameter : Ø2mm to 18mm
Voltage : 3 v to 12v
Planetary gear ratio: 6:1 ,4.7:1,13.1:1,22,1:1,61.1:1,105.1:1,288:1,494:1
Motor type : Coreless motor or Brushless motor
Feed back device are available.
Application
- Medical equipment
- CCTV
- Robot
- Chip Mounter
- Measuring Equipment
|
|
|
High precision planetary (epicyclic) gearbox coupled to a 3 pole 12mm ferrite motor. The unit features a lightweight injection-moulded gearbox assembly and is manufactured to an extremely high quality. The unit was developed for generating the accurate motion required in miniature desktop printers. The planetary geared motor has a unique cross-shaped output shaft which is ideal for zero slip transmission.
|
|
| ... products without technical information |
| |
|
The standard GLOBE PFG-red air motors range up to 2.1 kW. Gear ratios from 3:1 to 1000:1. The series are suitable for light to medium industrial applications. Mounting type is They are small in size, low in weight, maintenance-free and suitable for oil-free operation.
|
|
Globe Archimedes pneumatic motors 2M and 5M are installation sliding-vane motors with integrated planetary gear in the capacity range of 0,25 -1.0 KW small diameters and axial air connections permit the installation also with restrained spatial conditions.
The technical advantages of this engine series are:
Alternatively flanged connection or screwing in attachment M33x1 (2M)/M48x1,5 (5M)
Stop under load permissible engine cannot be overloaded
ATEX II-2-GDc-T5
Outstanding of weight per horsepower (kW/kg)
Approach without overload - large speed range
alternatively or two directions of rotation
stainless remarks are available
Snaps direction of rotation reversal permissible
|
|
|
|
