G & GH series gravel pumps are horizontal and single-casing centrifugal pumps. The type GH pumps are of high head ones.
Construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni hard and high-chrome wear resistant alloys. The discharge direction of pump can be oriented in any direction of 360°. This type of pump has the advantages of easy installation, good performance of NPSH and wear-resistance.
Application
Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries, which contain too big solids, to be pumped by common pumps. They are suitable for delivering slurries in mining, explosive sludge in metal melting, dredging in dredger and course of rivers, and other fields.
Notation: 6/4 DG (GH)
6: Suction diameter (inch)
4: Discharge diameter (inch)
D: Frame type
G: Gravel pump
H: High head |
|
Introduction:
Type M, AH, and HH pumps are cantilevered, horizontal, centrifugal slurry pumps, outlet from 25mm to 450mm.They are also named as heavy slurry pump because of bear-abrasive parts and heavy base.
The features are as followed:
The frame plates for type M, AH pumps have replaceable wear-resistant metal liners or rubber liners.The impellers are made of wear-resistant metal or rubber.The frame plate liner and impeller for HH pump are adoptable of hard metal only.
Bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily, being removed completely when being repaired.Bearing assembly use grease lubrication.
The shaft seal could use the packing seal, expeller seal and mechanical seal.
The discharge branch can be positioned at intervals of 45degrees by request and oriented to any eight positions to suit installations and applications.
Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.
Wide performance, good NPSH and high efficiency.The pump of this type may be installed in multistage series to meet the delivery for long distance.
Application:
The type of M, AH and HH pumps are using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.
Notation:
6/4 D-AH (R)
R:Rubber
AH:Ype Pump (Heavy slurry pump)
D:Base Type
6:Discharge diameter (inch)
4:Suction diameter(inch) |
|

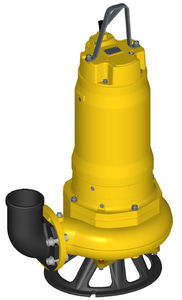

PUMPEX sludge pump SK is a portable pump and
features a sturdy stainless steel handle and a robust
ductile iron stand.
It can easily be lifted and moved to where it is needed
without suction hoses or any concern about suction lifts.
This makes installation and operation easy and safe. |
|
The features are as followed:
The frame plates for type M, AH pumps have replaceable wear-resistant metal liners or rubber liners.The impellers are made of wear-resistant metal.The frame plate liner and impeller for AH pump are adoptable of hard metal only.
Bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily, being removed completely when being repaired.Bearing assembly use grease lubrication.
The shaft seal could use the packing seal, expeller seal and mechanical seal.The discharge branch can be positioned at intervals of 45degrees by request and oriented to any eight positions to suit installations and applications.
Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.
Wide performance, good NPSH and high efficiency.The pump of this type may be installed in multistage series to meet the delivery for long distance.
Application:
The type of AH pumps are using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.
For example:Coal washery processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station.
Notation:
8/6 D-AH
AH:Ype Pump (Heavy slurry pump)
D:Base Type
8:Discharge diameter (inch)
6:Suction diameter(inch) |
|
Elastomer Lined Slurry pumps available in close coupled and XT models featuring extra thick liners. Elastomers available include rubber, neoprene and ceramic rod media for severe duty.
Specifications:
Capacities up to 20,000 GPM (4542 m3/h)
Heads to 164 feet (50 m)
Temperatures to 250° F (121° C)
Pressures to 400 PSIG (2758 kPa)
Solids to 1/8"(3mm)
Design Features:
Field Replaceable Rubber Liners Bolt in for quicker replacement, extra thick for extended wear life
Large Diameter Impeller for lower operating speeds, longer wear life
Five Discharge Positions suitable for most discharge pipe arrangements
Oil Lubricated Bearings for maximum bearing life.
Sealing Flexibility Choice of packing arrangements, mechanical seals.
|
|
Introduction:
With the development of the technology, our company has introduced the series ZJ slurry pump under the theory of modern fluid mechanics and mechanical, based on the software design and practical experiences.
The ZJ series slurry pumps are designed as single-stage, single-suction centrifugal pumps.They are classified into the horizontal version (ZJ type) and vertical version (ZJL type) according to mode of construction and the discharge diameters of horizontal pumps vary from 300mm to 200mm 150mm, 100mm, 80mm, 65mm, 50mm, 40mm, etc.And the discharge diameters of vertical pumps vary from 150mm to 100mm 80mm 65mm 50mm, etc.
Application:
The ZJ series slurry pumps are widely used in power, metallurgical, mining, coal and building materials, which are suitable for handling abrasive and corrosive solids-bearing slurries with maximum concentrations of wt.45% (ash) and wt.60% (ore) such as handling the fine ore and tailings in mining, removing ash and dredges in power plant and delivering coal tailings.The pumps can be operated in series according to special requirements
Notation: 200 ZJ(L)-A60
200:Discharge diameter(mm)
ZJ:Slurry pump
I:Denote the first stage pump or single stag pump, II denotes the second stage pump)
A:Number of vane of impeller
60:External diameter of impeller(cm) |
|
Goulds Model 5500 is the result of many years of experience designing and building severe duty slurry pumps. It's not only built to stand up to the toughest abrasive slurry services, but also is designed for extreme ease of maintenance and safety. A heavy duty bearing frame and shaft, extra thick wall sections and easily replaceable wear parts add up to many years of service even under the severest operating conditions. Also available as 5500HP.
Specifications:
Capacities to 17000 GPM (3861 m3/h)
Heads to 425 feet (139m)
Temperatures to 250° F (121° C)
Pressures to 500 PSIG (3448 kPa)
Solids to 5 inches (127 mm) |
|
Introduction

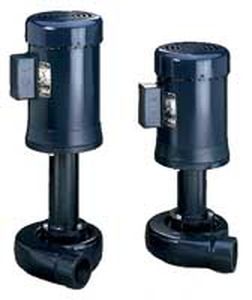

Type SP pumps are vertical, centrifugal slurry pumps submerged in sump to work. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.
The pump casing of type SP pumps are made of wear-resistant metal and the impellers are made of wear rubber or poyure.
According to liquid surface of the slurry pool, the pump transmission shaft and suction pipe could be chosen. The pump could operate under the best condition with different speed.
Application:
they are designed for delivering abrasive, large particle and high—density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection. |
|

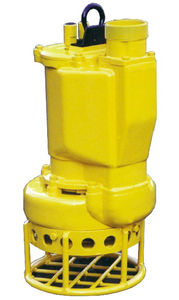

The S3CSL pump is designed to use in applications requiring settled solids to be put into suspension and pumped with the discharge water. Primary applications include desilting ponds, lakes and streams. Other jobs
may include filling sand bags to prevent beach erosion, tank and digester cleaning or pumping residue from rail tank cars or barges.
- Hardened Alloy Wear Parts
- Built-in Agitator for Stirring up Solids
- Variable Speed Hydraulic Drive
- Small Size Aliows Pump to fit through a 17 in. Opening
- Oil Lubricated Double Seals (Can Run Dry)
- Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
- Wide Range Performance Curve aliows use of Hydraulic Flows up to 10 GPM to Suit Application
- Opérâtes With Our 10 HP to 20 HP Power Units or Other Hydraulic Power Sources with flows to 10 GPM |
|
Type SM waste water pump with auto-matic suctioning:
From Schmalenberger’s industrial pump range. The pump is designed for media containing a high level of trapped air, along with media with coarse or excessive contamination and solid matter admix.
Applications:
Chemically-neutral media, such as lye, solvents, coolants, lubricants.
Areas of use:
Draining vats, containers, machine beds |
|
The S6105 is designed for applications where high heads and the ability to handle solids is required. A typical use for this pump would be as a temporary sewage lift station where force main pressures are encountered.
- Balanced High Efficiency Two Vane Closed Channel Impeller
- Will Pass 3" (75 mm) Semi-Solids
- Oil Lubricated Seals (Can Run Dry)
- Variable Speed Hydraulic Drive
- High Efficiency Balanced Vane Hydraulic Motor
- Wide Range of Performance
- Can Be Bolted Directly Into a Pipeline
- Safe Hydraulic Drive Can Be Used Where Electric Power is Hazardous or Impractical
- Opérâtes With Our HT100 and HT150 Power Units or Other Hydraulic Power Sources with flows upto70 GPM |
|
| Honda trash pumps are designed to allow solids(sticks, stones, and debris) up to 13/16 inch for the 2 inch model and 1 1/16 inch for 3 and 4 inch models to flow through the pump without clogging, making them ideal for construction sites. The WT pumps are designed to move water, and lots of it. The WT40 will move water at a rate of 433 gallons per minute and is capable of handling solids without clogging. A quick clean out port and easy maintenance features ensure long service life. Honda Trash Pumps are the ultimate choice for contractors and rental applications. |
|
