The powerful indicator N1500 offers among its universal input and the 2 relay outputs for the monitoring of the threshold values many other functions. The Min.- and Max.-values can be prompted with just a keystroke. Also there is a Hold and a Peak-Hold Function whose readouts can be deleted using either the function key or the digital input. The high tact frequency of 15 measurements/second (5 measurements/second when using linear input, thermocouples or Pt100) allows the N1500 indicator to monitor fast processes. It offers also the possibility to linearise the measurement signal when using non-linear input signals (mV, V, mA).
Features:
- Universal input
- Linearization of mV, V, mA signals
- 2 Relay outputs
- 6 Alarm features
- Voltage output 24 VDC for external 2-wire transmitter
- Memory for MAX and MIN values, hold and peak features
See more information in our shop:
***www.temperature-shop.de***
|
|

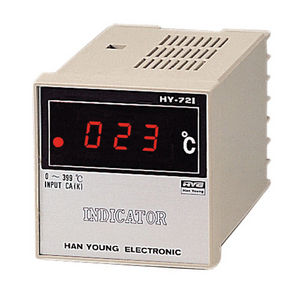

Various sizes displays with or without alarm functions.
Different mounting types f.ex wall or panel mounting.
|
|
Functions and display
- Alarm Indicator
The indicator shows, which time/tempera-ture conditions have been violated. The first violated condition is shown in the first column. All further violated conditions will be shown in the second column.
- Time Conditions
The transportation time, programmed between 1 to 48 days according to customer requirements, is subdivided into 24 time segments.
Example:
one time segment: 6 hours
total transportation time: 6 days
- Alarm Time Indicator
The arrow together with the word ALARM shows when the alarm conditions have been violated. (in which time segment after the start)
- Measurement Zones
The time/temperature parameters can be programmed according to customer requirements. (cumulative or single event)
Example:
21°C Alarm after 72h
>34°C Alarm after 2h
|
|
|
|
