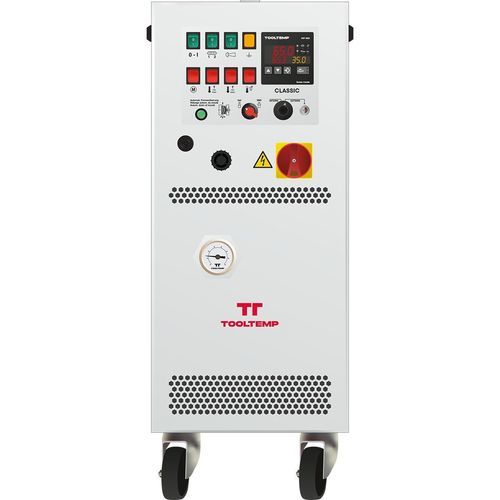

Digital temperature control unit CLASSIC Oil 200 8 Z

PIDfluid circulationoil

Overview
The powerful temperature control unit CLASSIC Oil 200 8 Z from our robust and time-tested CLASSIC product line is designed for operation with oil and impresses with its user-friendliness and reliability. Discover the reliable CLASSIC Oil 200 8 Z temperature control unit. Ideal for oil, with precise temperature control and high safety.

Functions

• Self-optimising temperature controller with temperature display 1/10°C – steps
• Display in °C or °F and l/min or gal/min
• Digital flow display and monitoring
• Automatic temperature control
• Switchover for temperature control on the mould
• Pressure display
• Automatic mould drainage
• Leakstopper device – operation in pressure and vacuum mode possible

Construction method

• High temperature pump with mechanical seal
• Hot oil circuit with bypass which ensures the internal oil circulation when the valves are closed
• Limescale free heat exchanger
• No cracking of the oil thanks to special heating construction
• Expansion tank with drip pan
• Unit on castors

Safety devices

• Level control for dry run protection
• Electronic temperature limitation and monitoring in the controller
• Mechanical safety thermostats
• Visual and acoustic fault indications
• Integrated circuit breakers
• Main switch, transformer and motor protection switch

Controller
Standard Controller MP-888: The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard.

Applications

• Die casting
• Plastics
• Pharmaceutical & chemicals
• Extrusion
• Rubber
• Food
• Wood
• Laminating, Printing & Textile

Caractéristiques / spécifications techniques

• Designed for operation with oil
• Self-optimising temperature control with 1/10°C resolution
• Selectable display units: °C / °F and l/min / gal/min
• Digital flow display and monitoring with alarm on flow rate drop
• Automatic mould drainage and mould temperature switchover
• Pressure display and Leakstopper device (pressure and vacuum operation)
• High-temperature pump with mechanical seal and bypassed hot oil circuit
• Limescale-free heat exchanger and special heating construction to prevent oil cracking
• Expansion tank with drip pan; unit mounted on castors
• Level control for dry-run protection; electronic and mechanical temperature safety devices
• Visual and acoustic fault indications; integrated circuit breakers, main switch, transformer and motor protection
• Standard MP-888 controller with analogue interfaces (0-5 V, 0-10 V, 4-20 mA)
