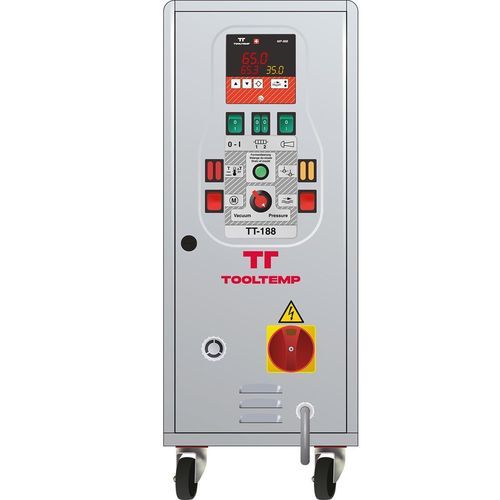

Digital temperature control unit TT-188

wateroilheating

Product Overview: The powerful temperature control unit CLASSIC Duo TT-188 from the robust and time-tested CLASSIC product line is designed for operation with water or oil and impresses with its user-friendliness and reliability. Functions: - Self-optimizing temperature controller with temperature display 1/10 °C – steps - Display in °C or °F and l/min or gal/min; Digital flow display and monitoring - Automatic temperature control - Heating switchable in stages - Pressure display - Automatic or manual refill - Automatic mould drainage - Leakstopper device – operation in pressure and vacuum mode possible Construction method: - Submersible sealless pump made from bronze - Limescale free heat exchanger - Corrosion resistant unit for a long service life - All parts in contact with water are made of stainless steel or bronze - Unit on castors Safety devices: - Level control for dry run protection - Electronic temperature limitation and monitoring in the controller - Mechanical safety thermostats - Visual and acoustic fault indications - Integrated circuit breakers - Main switch, transformer and motor protection switch Controller: Standard Controller MP-888: The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard. Applications: - Die casting - Plastics - Pharmaceutical & chemicals - Extrusion - Rubber - Food - Wood - Laminating, Printing & Textile Technical Specifications / Features: - Model: CLASSIC Duo TT-188 - Power: 9 kW - Medium: Water or oil - Self-optimizing temperature controller - Digital flow and pressure display - Automatic/manual refill and mould drainage - Leakstopper device for pressure/vacuum operation - Submersible sealless bronze pump - Limescale free heat exchanger - Corrosion resistant, stainless steel/bronze wetted parts - Unit on castors for mobility - Comprehensive safety devices (level control, thermostats, circuit breakers, etc.) - Standard digital controller MP-888 with multiple interfaces
