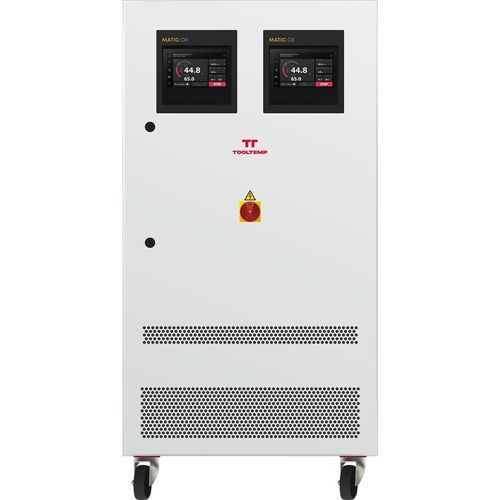

Temperature control unit with LCD display MATIC Oil 360/2 24

oilintelligentcorrosion-resistant

Overview
The 2-circuit oil temperature control unit MATIC Oil 360/2 24 is designed for oil operation, offering simple operation, continuous intelligent monitoring with fault diagnostics, and model-based predictive control throughout the temperature regulation process.

Functions

• IRIS control system
• Pt100 temperature sensors in feed and return lines
• Heater control by solid-state relays (SSR)
• Variable-speed pump with automatic eco-mode
• Mould evacuation function
• Leakstop operating mode

Construction

• Triple-bearing high-temperature pump developed and produced by Tool-Temp
• Inverted, limescale-free spiral-tube heat exchanger
• Fully immersed heaters in high-temperature corrosion-resistant nickel alloy (Incoloy 800)
• Maintenance-free flow meter
• Stainless-steel solid piping

Safety devices

• Multiply redundant mechanical temperature limiter
• Pump motor monitored by the variable-frequency drive (VFD)
• Configurable safeguard limits and automatic reactions
• Configurable audible alarm

Controller (IRIS Control System)
IRIS is an intelligent control system providing local touchscreen operation and remote access via the integrated web server (LAN or WLAN). It records and displays temperatures, pressures, flow rates, operating states, status messages and trend/chart data. Model-based algorithms continuously analyse operating data versus expected behaviour to optimise temperature and flow control and support reliable process monitoring and diagnostics.

Applications

• Die casting
• Plastics (injection, extrusion)
• Pharmaceutical & chemicals
• Rubber & silicones
• Food processing
• Woodworking
• Laminating, printing & textile

Technical characteristics / specifications

• Type: 2-circuit oil temperature control unit
• Model: MATIC Oil 360/2 24
• Brand: Tool-Temp
• Control system: IRIS (touchscreen, integrated web server, LAN/WLAN)
• Temperature sensing: Pt100 sensors in feed and return
• Heater control: solid-state relays (SSR)
• Pump: triple-bearing high-temperature pump; variable-speed with automatic eco-mode; pump motor monitored by VFD
• Heat exchanger: inverted, limescale-free spiral-tube design
• Heaters: fully immersed Incoloy 800 elements
• Flow measurement: maintenance-free flow meter
• Piping: stainless-steel solid piping
• Operational modes: mould evacuation, Leakstop
• Safety: redundant mechanical temperature limiter; configurable safeguard limits and audible alarm
