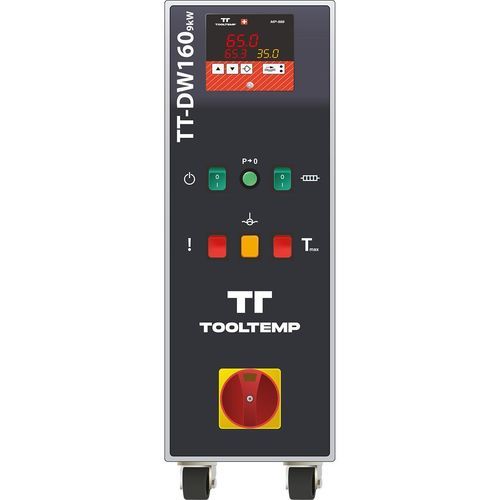

Digital temperature control unit CLASSIC Water TT-DW 160

electronicwaterstandard

The powerful temperature control unit CLASSIC Water TT-DW 160 9 kW from the robust and time-tested CLASSIC product line is designed for operation with pressurised water and impresses with its user-friendliness and reliability.

Functions

• Self-optimizing temperature controller with temperature display 1/10 °C – steps
• Display in °C or °F and l/min or gal/min
• Digital flow display and monitoring
• Automatic temperature control
• Pressure display
• Automatic water filling
• Automatic mould drainage
• Automatic air venting
• Pressure relief

Construction method

• Pump with magnetic coupling
• Fast reacting heating system
• All parts in contact with water are made of stainless steel or bronze
• Unit on castors

Safety devices

• Level control for dry run protection
• Electronic temperature limitation and monitoring in the controller
• Mechanical safety thermostats
• Visual and acoustic fault indications
• Integrated circuit breakers
• Main switch, transformer and motor protection switch

Controller

• Standard controller MP-888: The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard.
• Digital interface controller MP-988: The digital interface controller MP-988 is designed for the interfaces RS-485, RS-232, Current Loop 20 mA, CAN-bus, Profibus, and Profinet. These interfaces are freely accessible without additional card inserts. Also included are a temperature differential display and over 30 integrated machine protocols.

Applications

• Die casting
• Plastics
• Pharmaceutical & chemicals
• Extrusion
• Rubber
• Food
• Wood
• Laminating, Printing & Textile

Characteristics / Technical Specifications

• Product line: CLASSIC
• Model: Water TT-DW 160 9 kW
• Medium: Pressurised water
• Temperature controller: MP-888 (standard), MP-988 (digital interface)
• Heating power: 9 kW
• Construction: Stainless steel or bronze parts in contact with water, unit on castors
• Safety: Level control, electronic and mechanical temperature limitation, circuit breakers, main switch, transformer, motor protection switch
• Display: °C/°F, l/min or gal/min
• Automatic functions: Water filling, mould drainage, air venting, pressure relief
