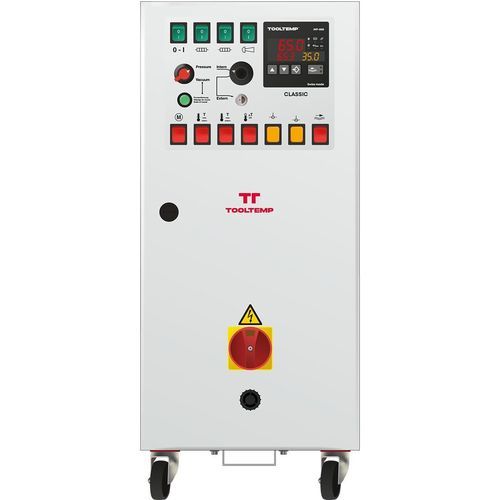

Digital temperature control unit CLASSIC Duo 90/150 12 E

wateroilrobust

The powerful temperature control unit CLASSIC Duo 90/150 12 E from the robust and time-tested CLASSIC product line is designed for operation with water or oil and impresses with its user-friendliness and reliability. This universal temperature control unit is suitable for a wide range of industrial applications, ensuring precise and efficient temperature management.

Functions

• Self-optimizing temperature controller with temperature display in 1/10°C steps
• Display in °C to °F and l/min or gal/min
• Digital flow display and monitoring
• Automatic temperature control
• Switchover for temperature control on the mould
• Heating switchable in stages
• Pressure display
• Automatic or manual refill
• Time limited water refill
• Automatic mould drainage
• Leakstopper device – operation in pressure and vacuum mode possible

Construction method

• Submersible sealless pump made from bronze
• Limescale free heat exchanger
• Corrosion resistant device for a long service life
• All parts in contact with water are made of stainless steel or bronze
• Unit on castors

Safety devices

• Level control for dry run protection
• Electronic temperature limitation and monitoring in the controller
• Visual and acoustic fault indications
• Integrated circuit breakers
• Main switch, transformer and motor protection switch

Controller

• Standard Controller MP-888: Digital temperature controller for precise regulation
• Displays current and target temperature
• Monitors circulation of the tempering medium
• Triggers alarm in case of flow rate drop
• Operable in °F or °C
• Analogue interfaces: 0-5 V, 0-10 V, and 4-20 mA as standard

Applications

• Die casting
• Plastics
• Pharmaceutical & chemicals
• Extrusion
• Rubber
• Food
• Wood
• Laminating, Printing & Textile

Technical Specifications / Features

• Operation with water or oil
• Universal temperature control for various industrial applications
• Robust and reliable construction
• Swiss quality
