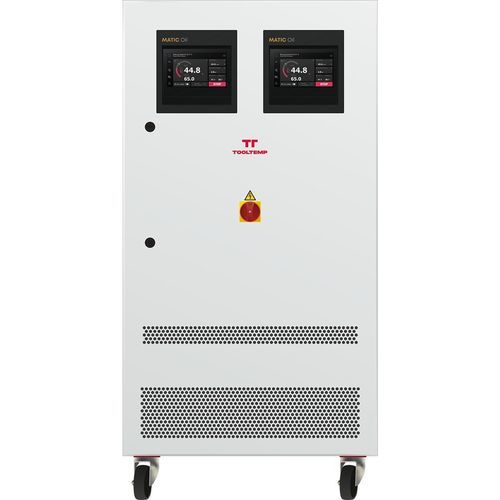

Temperature control unit with LCD display MATIC Oil 360/2 16

with touchscreenprogrammable2-loop

Overview
The 2-circuit oil temperature control unit MATIC Oil 360/2 16 is designed for operation with oil and provides straightforward operation, continuous intelligent monitoring with diagnostics, and predictive, model-based regulation of temperature and flow throughout the process.

Functions

• IRIS control system
• Pt100 temperature sensors in feed and return lines
• Heater control by solid-state relays
• Variable-speed pump with automatic eco-mode
• Mould evacuation
• Leakstop operating mode

Construction

• Triple-bearing high-temperature pump developed and produced by Tool-Temp
• Inverted, limescale-free spiral-tube heat exchanger
• Fully immersed heaters in Incoloy 800 (corrosion-resistant high-temperature nickel alloy)
• Maintenance-free flow meter
• Stainless-steel solid piping

Safety devices

• Multiply redundant mechanical temperature limiter
• Pump motor monitored by the variable-frequency drive (VFD)
• Configurable safeguard limits and corresponding reactions
• Configurable audible alarm

Controller
The unit is equipped with the IRIS control system, offering an intuitive touchscreen interface, an integrated web server for local and remote access (LAN or integrated WLAN) and extensive process data handling. IRIS records and displays temperatures, pressures, flow rates, operating states, status messages, chart data and trends. Model-based algorithms continuously compare measured data with expected behaviour to optimise regulation and enable reliable process monitoring and remote operation.

Applications

• Die casting
• Plastics (injection, extrusion)
• Pharmaceutical and chemical processes
• Extrusion
• Rubber and silicone processing
• Food production
• Wood processing
• Laminating, printing and textile processes

Technical characteristics / specifications

• Type: 2-circuit oil temperature control unit
• Model: MATIC Oil 360/2 16
• Control system: IRIS (touchscreen, local and remote operation, data logging and trends)
• Temperature sensing: Pt100 sensors in feed and return lines
• Heating: Fully immersed heaters in Incoloy 800 with solid-state relay control
• Heat exchanger: Inverted, limescale-free spiral-tube design
• Pump: Triple-bearing high-temperature pump with variable speed and automatic eco-mode; motor monitored by VFD
• Safety: Redundant mechanical temperature limiter; configurable safeguard limits and audible alarm
• Flow measurement: Maintenance-free flow meter
• Piping: Stainless-steel solid piping
• Operational functions: Mould evacuation, Leakstop mode, predictive model-based control algorithms
