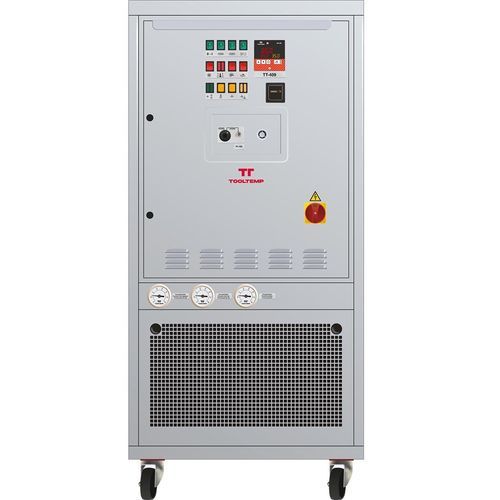

Digital temperature control unit CLASSIC Oil TT-409 Z

wateroilheating

The powerful temperature control unit CLASSIC Oil TT-409 Z 24 kW from the robust and time-tested CLASSIC product line is designed for operation with oil and impresses with its user-friendliness and reliability.

Functions

• Self-optimizing temperature controller with temperature display 1/10°C – steps
• Display in °C or °F and l/min or gal/min
• Digital flow display and monitoring
• Automatic temperature control
• Switchover for temperature control at the consumer
• Heating switchable in stages
• Heaters with cascade connection
• Pressure indication: pump, compressed air unit, compressed air mains
• With pressure regulation

Construction method

• High temperature pump with mechanical seal
• Hot oil circuit with bypass, which ensures the internal oil circulation when the valves are closed
• With two cooling circuits:
  circuit 1: +80°C to +240°C
  circuit 2: -20°C to +80°C
• Limescale free heat exchanger
• No cracking of the oil thanks to special heating construction
• All parts in contact with water are made of stainless steel or bronze
• Unit on castors

Safety devices

• Level control for dry run protection
• Expansion vessel with safety shut-off in case of overflow
• Electronic temperature limitation and monitoring in the controller
• Mechanical safety thermostats
• Visual and acoustic fault indications
• Integrated circuit breakers
• Main switch, transformer and motor protection switch

Controller

• Standard controller MP-888: The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard.
• Digital interface controller MP-988: The digital interface controller MP-988 is designed for the interfaces RS-485, RS-232, Current Loop 20 mA, CAN-bus, Profibus, and Profinet. These interfaces are freely accessible without additional card inserts. Also included are a temperature differential display and over 30 integrated machine protocols.

Applications

• Die casting
• Plastics
• Pharmaceutical & chemicals
• Extrusion
• Rubber
• Food
• Wood
• Laminating, Printing & Textile

Characteristics / Technical Specifications

• Product line: CLASSIC
• Model: Oil TT-409 Z 24 kW
• Medium: Oil
• Temperature range (cooling circuits):
  • Circuit 1: +80°C to +240°C
  • Circuit 2: -20°C to +80°C
• Heating power: 24 kW
• High temperature pump with mechanical seal
• Limescale free heat exchanger
• Stainless steel or bronze parts in contact with water
• Unit on castors for mobility
• Integrated safety and monitoring features
• Digital and analogue controller options (MP-888, MP-988)
