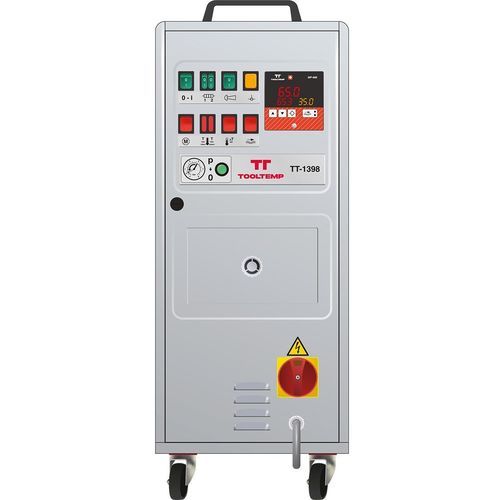

Digital temperature control unit TT-1398 N

pressurized waterheatingautomatic

Product Overview: The powerful temperature control unit CLASSIC Water TT-1398 N 6 kW from the robust and time-tested CLASSIC product line is designed for operation with pressurised water and impresses with its user-friendliness and reliability. Functions: - Self-optimizing temperature controller with temperature display 1/10°C – steps - Display in °C or °F and l/min or gal/min - Digital flow display and monitoring - Automatic temperature control - Heating switchable in stages - Display of the system pressure - Automatic water filling - Automatic air venting - Pressure relief Construction method: - Proven pump with mechanical seal - Limescale free heat exchanger - All parts in contact with water are made of stainless steel or bronze - Unit on castors Safety devices: - Level control for dry run protection - Electronic temperature limitation and monitoring in the controller - Mechanical safety thermostats - Visual and acoustic fault indications - Integrated circuit breakers - Main switch, transformer and motor protection switch Controller: Standard Controller MP-888 The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard. Applications: - Die casting - Plastics - Pharmaceutical & chemicals - Extrusion - Rubber - Food - Wood - Laminating, Printing & Textile Technical Specifications / Features: - Product line: CLASSIC - Model: Water TT-1398 N 6 kW - Medium: Pressurized water - Controller: MP-888 digital temperature controller - Heating capacity: 6 kW - Display: °C/°F, l/min/gal/min - Construction: Stainless steel/bronze water-contact parts, limescale-free heat exchanger, unit on castors - Safety: Dry run protection, electronic and mechanical temperature limitation, circuit breakers, main switch, transformer, motor protection switch - Automatic functions: Water filling, air venting, pressure relief
