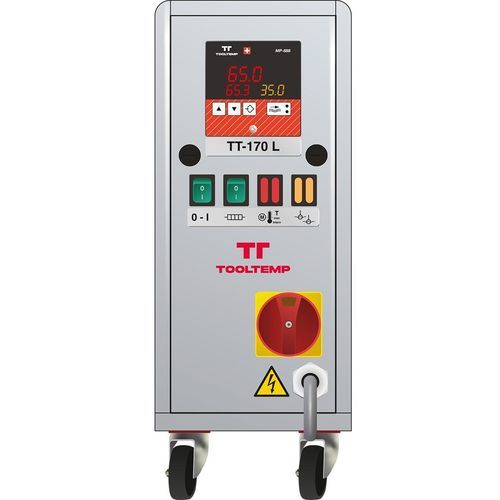

Digital temperature controller TT-170 L

circulating waterwaterstandard

Product Overview: The powerful temperature control unit CLASSIC Water TT-170 L from the robust and time-tested CLASSIC product line is designed for operation with water and impresses with its user-friendliness and reliability. Functions: - Self-optimizing temperature controller with temperature display 1/10°C – steps - Display in °C or °F and l/min or gal/min - Automatic temperature control - Automatic water filling Construction method: - Submersible sealless pump made from bronze - Limescale free heat exchanger - Corrosion resistant device for a long service life - All parts in contact with water are made of stainless steel or bronze - Unit on castors Safety devices: - Level control for dry run protection - Electronic temperature limitation and monitoring in the controller - Mechanical safety thermostat - Visual and acoustic fault indications - Integrated circuit breakers - Main switch, transformer and motor protection switch Controller: Standard Controller MP-888 The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard. Applications: - Die casting - Plastics - Pharmaceutical & chemicals - Extrusion - Rubber - Food - Wood - Laminating, Printing & Textile Technical Specifications / Features: - Product line: CLASSIC - Model: Water TT-170 L 3 kW - Medium: Water - Self-optimizing temperature controller - Automatic water filling - Submersible sealless bronze pump - Limescale free heat exchanger - Corrosion resistant, stainless steel/bronze water-contact parts - Unit on castors for mobility - Level control for dry run protection - Electronic and mechanical safety devices - Visual/acoustic fault indication - Integrated circuit breakers - Main switch, transformer, motor protection switch - Standard controller: MP-888 (digital, °C/°F, 0-5V, 0-10V, 4-20mA interfaces)
