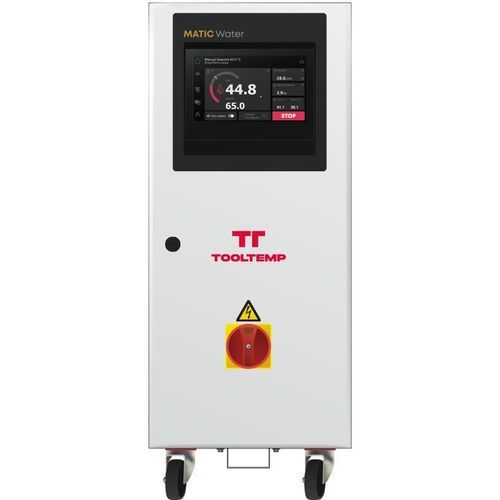

Intelligent temperature control unit MATIC Water 90 18 E

digitalcirculating waterwater

The powerful MATIC Water 90 18 E temperature control unit is designed for operation with water and features simple operation, continuous and intelligent monitoring with troubleshooting, as well as predictive and tailored control throughout the temperature control process. - Functions: - IRIS control system - Pt100 temperature sensors in feed and return lines - Heater control by solid-state relays - Variable-speed pump with automatic eco-mode - Display of the system and flow pressure - Automatic water filling - Mould drainage - Automatic air venting - Leakstopper device - Construction method: - Submersible pump made of tin bronze - Powerful cooling system: spiral and plate heat exchanger - Scale-free heat exchanger - Fully immersed heating elements made of a corrosion-free high-temperature nickel alloy (Incoloy 800) - Maintenance-free flow meter - Fixed stainless steel pipework - Safety devices: - Redundant, mechanical temperature limiter - Pump motor monitored by the variable frequency drive - Configurable safeguard limits and corresponding reactions - Configurable audible alarm - Controller: IRIS Control System With the brand-new control system IRIS, Tool-Temp offers a clever and intelligent solution for all applications in process temperature control. Users can look forward to effortless operation as well as a future-oriented communication and interface solution. All relevant operating data such as temperatures, pressures, flow rates, operating states, status messages, chart data, and data trends are available in the device. IRIS continuously provides information, reporting, and optimization of the temperature control unit. In addition to operation via the touchscreen on-site, remote control is also possible. With any device such as a smartphone, tablet, or PC, access to the integrated web server of the temperature controller can be made via a web browser. The connection is either via a LAN cable or the integrated WLAN adapter in the controller. The operation does not differ in any way from manual control. The model-based algorithms continuously capture all available data and compare it with the current expected behavior. This continuous adaptation enables the overall system to achieve optimal, uninterrupted, and reliable regulation of temperature and flow, as well as reliable process monitoring. - Applications: - Die casting - Plastics - Pharmaceutical & chemicals - Extrusion - Rubber - Food - Wood - Laminating, Printing & Textile - Technical Specifications / Features: - IRIS control system - Pt100 temperature sensors in feed and return lines - Heater control by solid-state relays - Variable-speed pump with automatic eco-mode - Display of the system and flow pressure - Automatic water filling - Mould drainage - Automatic air venting - Leakstopper device - Submersible pump made of tin bronze - Powerful cooling system: spiral and plate heat exchanger - Scale-free heat exchanger - Fully immersed heating elements made of a corrosion-free high-temperature nickel alloy (Incoloy 800) - Maintenance-free flow meter - Fixed stainless steel pipework - Redundant, mechanical temperature limiter - Pump motor monitored by the variable frequency drive - Configurable safeguard limits and corresponding reactions - Configurable audible alarm
