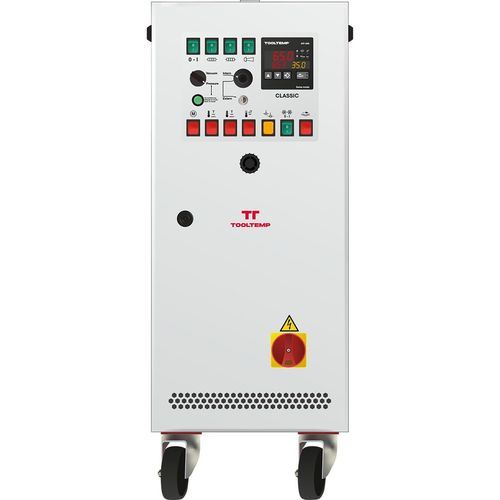

Digital temperature control unit CLASSIC Water 140 12 N

pressurized watercirculating waterwater

Overview
The CLASSIC Water 140 12 N temperature control unit from the proven CLASSIC product line is engineered for use with pressurised water. It provides precise temperature regulation, digital flow monitoring and industrial-grade components for continuous production environments.

Functions

• Self‑optimising temperature controller with 0.1 °C resolution
• Display selectable in °C or °F and flow in l/min or gal/min
• Digital flow display and flow monitoring with alarm on drop
• Automatic temperature control and mould temperature switchover
• Stage‑switchable heating
• System and flow pressure display, pressure relief
• Automatic water filling, automatic air venting
• Automatic mould drainage with compressed air
• Leakstopper device — operation in pressure and vacuum modes

Construction

• Proven pump with mechanical seal
• Two cooling options: indirect and direct cooling
• Scale‑resistant heat exchanger
• Corrosion‑resistant construction; all wetted parts in stainless steel or bronze
• Mobile unit mounted on castors

Safety devices

• Level control for dry‑run protection
• Electronic temperature limitation and monitoring in the controller
• Mechanical safety thermostats
• Visual and acoustic fault indicators
• Integrated circuit breakers, main switch and motor protection

Controller

• Standard controller: MP-888
• Digital temperature controller with precise regulation, displays actual and setpoint temperature
• Monitors tempering medium circulation and triggers alarm on flow reduction
• Operable in °C or °F
• Standard analogue interfaces: 0-5 V, 0-10 V and 4-20 mA

Applications

• Die casting
• Injection moulding
• Pharmaceutical & chemical processes
• Extrusion
• Rubber & silicone processing
• Food industry
• Wood processing
• Laminating, printing & textile production

Technical specifications

• Product line: CLASSIC (pressurised water control units)
• Model: CLASSIC Water 140 12 N
• Temperature display resolution: 0.1 °C
• Units: °C/°F; flow in l/min or gal/min
• Flow monitoring: digital display and alarm on drop
• Heating: stage‑switchable
• Cooling: indirect and direct options
• Heat exchanger: scale‑resistant
• Wetted materials: stainless steel or bronze
• Pump: mechanical seal
• Mobility: castors
• Safety: level control, electronic temperature limit, mechanical safety thermostats, visual/acoustic fault indicators, integrated breakers
• Controller interfaces: MP-888 with 0-5 V, 0-10 V, 4-20 mA
