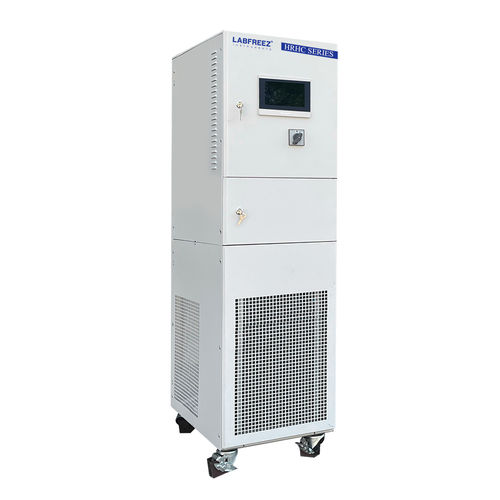

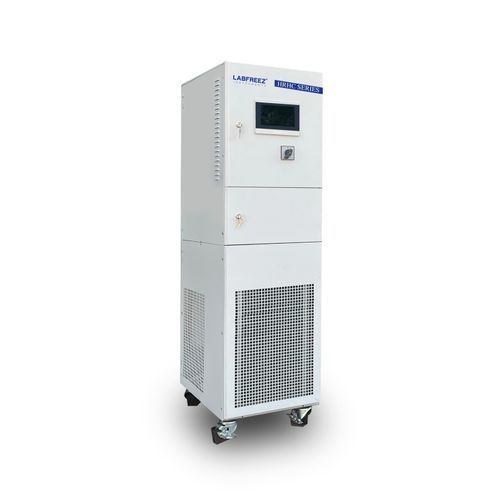

Temperature control unit with touchscreen HRHC-AH series

TFT graphic displaycirculatingwater

Product description

• Refrigeration and heating temperature control system designed for reactors and high-heat-release processes.
• Applicable to SUS reactors and double-wall reactors where temperature differentials exceed 150°C.
• Enables rapid cooling from high-temperature reactions and fast heat-up/cool-down cycles for polymerization and advanced-flow processes.

Typical application of refrigeration heating temperature control system

• Dynamic thermostatic control of high-pressure reaction kettles and double-layer glass/reactors (cold and heat sources).
• Microchannel reactor temperature control, small-scale temperature control systems, steam-feed temperature control, and low-temperature material aging tests.
• Combined chemical cold/heat source control; cooling/heating for semiconductor equipment; temperature control for vacuum chambers.

Advantages and functions of temperature control system of refrigeration

• Wide temperature capability (examples of available ranges include −80~190°C, −70~220°C, −88~170°C, −55~250°C, −30~300°C); typical model operating range −25°C~200°C.
• High precision intelligent control with feedback PID and dedicated dynamic control algorithms; PLC-based controller.
• Cooling capacity from 0.5 to 1200 kW (model dependent) to ensure production stability and repeatability.
• Multi-function alarm and safety protections; plate heat exchanger and tube-type heaters to increase heating/cooling rates.
• 7-inch or 10-inch color TFT touch-screen display with graphical temperature curves and data export (Excel).
• Magnetic drive pump to prevent seal leakage; fully closed circulation to extend thermal fluid life and avoid oil mist or vapor issues.
• Ultra-high-temperature cooling capable of direct cooling from up to 300°C without medium change or pressurization in many configurations.

Design notes
The system uses a fully closed-pipe layout and high-efficiency plate heat exchangers to minimize required heat-transfer fluid and maximize heat utilization for fast temperature changes. An expansion vessel isolates the circulating medium near ambient to reduce oxidation and moisture absorption, lowering volatility and degradation risks across the operating range.

Advantage

• Wide working temperature range
• High process stability and reproducibility
• Intelligent, high-precision temperature control
• Fastest heating and cooling rates using plate exchangers and pipeline heating
• High cooling power options
• Large temperature span without fluid replacement
• Closed circulation extends thermal fluid lifetime
• Compact footprint
• 7-inch / 10-inch color TFT touch-screen
• Comprehensive warning and safety functions
• Rapid cooling from high temperature
• Magnetic drive pump to avoid circulation pump leakage

Application

• Reactor systems / autoclaves
• Pilot and mini-plant systems
• Scale-up and process development
• Double-wall reactors
• Advanced-flow / microchannel reactors
• Distillation and separation systems
• Material testing and combinatorial chemistry
• Semiconductor equipment cooling/heating
• Vacuum chamber temperature control

Specifications (table)

• Model: HRHC-AH235W; HRHC-AH235; HRHC-AH255W; HRHC-AH255; HRHC-AH270W; HRHC-AH2A0W; HRHC-AH235 (examples)
• Temperature range (°C): −25°C~200°C
• Control mode: Feedback PID with special dynamic control calculation, PLC controller
• Temperature control: Material/process-oriented control
• Program editor: 20 programs, up to 45 steps per program
• Communication protocol: MODBUS RTU, RS485 interface
• Temperature feedback: Four points — inlet/outlet of heat-transfer medium, heater, and material in reactor (external sensors)
• Refrigeration host: Refrigeration host temperature can be set independently
• Temperature accuracy: ±1°C (typical)
• Heating power (examples, model dependent): 3.5 kW; 5.5 kW; 7 kW; 10 kW
• Cooling capacity (examples, model dependent): at 200°C: 3.5/5.5/7/10 kW; at 100°C: 3.5/5.5/7/10 kW; at 20°C: 3.5/5.5/7/10 kW; at −5°C: 3/4.5/6.6/8 kW; at −20°C: 1.8/2.8/3.8/4.6 kW
• Circulation pump (examples): Max 35 L/min @2 bar; Max 50 L/min @2 bar; Max 75 L/min @2 bar; Max 110 L/min @2 bar
• Compressor: Copeland (specified)
• Expansion valve: Danfoss (specified)
• Evaporator: KAORI plate heat exchanger
• Operation panel: 7-inch color touch screen, temperature curve recording, data export to Excel (7-inch / 10-inch options)
• Safety protection: Self-diagnosis, freezer overload protection, high-pressure switch, overload relay, thermal protection, low-liquid-level protection, high-temperature protection, temperature fault protection
• Closed circulation: Full closed circulation — no oil mist at high temperature, no water vapor at low temperature; automatic oil supply at low temperature
• Refrigerant: R-404A
• Connection size: DN20 / DN25 / DN32 (model dependent)
• Water-cooled example flow: 800 L/H @1.5~4 bar; 1200 L/H @1.5~4 bar; 2000 L/H @1.5~4 bar; 2900 L/H @1.5~4 bar (model dependent)
• Dimensions (mm, examples): water-cooled 500×680×1250; air-cooled 500×680×1450 or 650×700×1650 (model dependent)
• Weight (examples): water-cooled 160 / 235 / 315 / 390 kg; air-cooled 195 / 265 / 355 / 425 kg (model dependent)
• Power (examples): AC380V 50Hz 6 kW (max); AC380V 50Hz 8 kW (max); AC380V 50Hz 11 kW (max); AC380V 50Hz 14 kW (max)
• Case material: SUS 304
