Refrigerated heating circulator HRHC series
for high temperatures

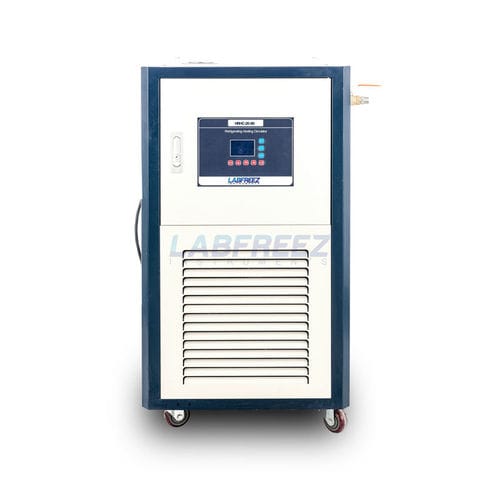

Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures
Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures
Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures - image - 2
Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures - image - 3
Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures - image - 4
Refrigerated heating circulator - HRHC series - Labfreez Instruments Group Co., Ltd - for high temperatures - image - 5
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Other characteristics
refrigerated, for high temperatures
Temperature

Max.: 350 °C
(662 °F)

Min.: -95 °C
(-139 °F)

Capacity

Max.: 50 l
(13.21 gal)

Min.: 30 l
(7.93 gal)

Power

Max.: 100,000 W
(341,214 BTU/h)

Min.: 1,000 W
(3,412.1 BTU/h)

Description

Product overview
  • HRHC Series integrated refrigeration-and-heating circulator designed for precise temperature control of jacketed reactors; applicable temperature examples: -10°C ~ -80°C to +200°C (options up to −95°C and +350°C).
  • Models on this page: 30 L and 50 L variants suitable for 30–50 L jacket reactors.
  • Optional: RS485/Modbus communication and explosion-proof module.


Design and operation
  • Closed circulation of heat transfer medium with a mechanically connected expansion vessel; expansion vessel temperature kept below 50°C at high operation temperatures.
  • Closed liquid loop prevents moisture ingress at low temperatures and oil mist volatilization at high temperatures, extending fluid life.
  • Same system and heat transfer medium enable continuous control across very wide temperature ranges; cooling capacity examples: 1 kW to 100 kW depending on configuration.


Features
  • Integrated heating-and-cooling container with large heat-exchange area for faster temperature change and reduced heat-transfer oil volume.
  • Compressor refrigeration can engage at elevated setpoints to improve cooling speed and energy efficiency.
  • Closed cycle reduces oil oxidation and moisture-related issues, extending maintenance intervals.
  • Comprehensive protections: self-diagnosis, freezer overload protection, high-pressure switch, overload relay, thermal and high-temperature protection.
  • Adaptive PID control continuously adjusts parameters using multi-directional temperature measurements for stable reaction control.
  • Calibration/correction function for internal and external PT100 probes.
  • Use of CFC/HCFC-free refrigerants; recognized compressor brands and high-temp circulation pumps for reliability.
  • Liquid circuit: industrial seamless 304 stainless steel heating pipe (3.0 mm thickness); 304 stainless steel hoses for connections.
  • Solid-state relays (no sparks, low noise) and simultaneous setpoint/actual temperature display with over-temperature alarm.
  • High-lift pump design supports long-distance transport of heat-conducting media; filling procedure for heat transfer fluid is simple and efficient.


Common specifications (summary)
  • Series / Model: HRHC Series
  • Function: Integrated refrigeration + heating circulator for jacketed reactors
  • Typical temperature capability: approx. −95°C to +350°C (options); common shown ranges: -10°C ~ -80°C to +200°C
  • Capacities shown: 30 L and 50 L (suitable for 30–50 L jacket reactors)
  • Heating power: example 6000 W
  • Cooling power: model-dependent (examples provided per model)
  • Control & sensor: Microcomputer control, LCD, PT100 sensor, adaptive PID
  • Pump & flow: enclosed non-leakage pump; example flow ~35 L/min; head ~10 m; pump power ~280 W
  • Construction: 304 stainless steel heating pipe 3.0 mm; body with anti-corrosion plastic coating
  • Refrigerants/examples: R22 (as listed) — CFC/HCFC-free options available
  • Safety: overload, overheat, high-pressure switch, thermal protection, self-diagnosis
  • Options: RS485/Modbus communication, explosion-proof module
  • Typical dimensions (example): 720×650×1120 mm; weight varies by model (95–124 kg)


30 L models — examples
  • Models: HRHC-30-20 / HRHC-30-30 / HRHC-30-40
  • Recommended jacket reactor: 30 L
  • Tank volume: 11 L; Heating volume: 2 L; Heating tank size: Ø90×300 mm; Oil tank size: 300×300×120 mm
  • Example max temp. ranges: -20 ~ +200°C, -35 ~ +200°C, -40 ~ +200°C; no-load min temp examples: -22°C, -35°C, -42°C
  • Power supply: 380V±10% 50Hz; Heating power example: 6000 W; Cooling power examples per model as listed
  • Flow/pressure: flow ~35 L/min; head ~10 m; pressure ~4 MPa; display resolution 0.1°C


50 L models — examples
  • Models: HRHC-50-20 / HRHC-50-30 / HRHC-50-40
  • Recommended jacket reactor: 50 L
  • Tank volume: 11 L; Heating volume: 2 L; Heating tank size: Ø90×300 mm; Oil tank size: 300×300×120 mm
  • Example max temp. ranges: -20 ~ +200°C, -30 ~ +200°C, -40 ~ +200°C; no-load min temp examples: -22°C, -32°C, -42°C
  • Power supply: 380V±10% 50Hz; Heating power example: 6000 W; Cooling power examples per model as listed
  • Flow/pressure: flow ~35 L/min; head ~10 m; pressure ~4 MPa; display resolution 0.1°C


Notes
  • Tables and ranges above are representative examples for 30 L and 50 L variants; optional configurations and extended temperature ranges (+250°C, +300°C) and explosion-proof versions are available.
  • Communication options (RS485/Modbus) and explosion-proof module are optional features.


Technical specifications
  • SKU: HRHC
  • Temperature control range (example): -100°C ~ 400°C; Control accuracy: ±0.1°C
  • Sensor: PT100; Medium viscosity example: 500 C.S.T
  • Circulating pump power example: 280 W; Head ~10 m; Flow ~35 L/min; Pressure ~4 MPa
  • Refrigeration: hermetic compressors (brands cited in examples); Pump: enclosed non-leakage
  • Accessories: connector, manual, inlet/outlet gasket set, stainless steel hoses (examples included)
