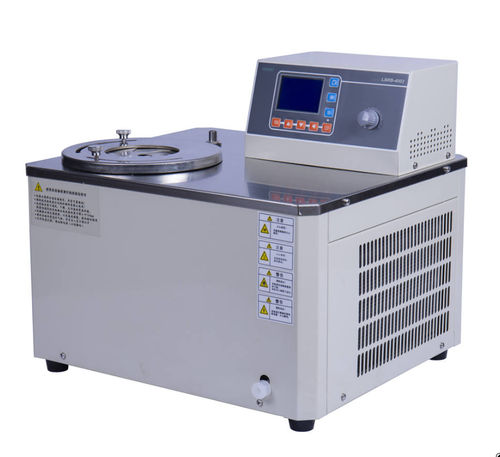

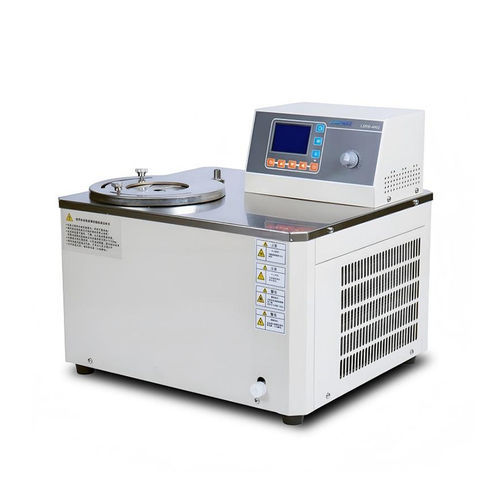

Circulating water bath LSRB series

agitatinglaboratorywith cooling system

Usage:
LSRB series circulating heating and cooling magnetic stirring reaction water baths provide controlled low- and high-temperature environments for flasks, beakers and test tubes. They are intended as an alternative to dry ice or liquid nitrogen for low-temperature reactions and for precise high-temperature thermostatting. Typical users: hospitals, research laboratories, universities, enzymology and biological labs, quality control and identification facilities.

Characteristics:

• Digital temperature setting and display with selectable ranges.
• Fully enclosed magnetic stirrer for stable, contamination-reduced mixing.
• Optional built-in dual stirring to maintain uniform specimen temperature within reaction vessels.
• Adjustable slot cover opening to reduce refrigerant consumption.
• Lever fixture for securing burettes, probes and auxiliary devices.
• International-brand compressor for high reliability and efficiency.
• Convenient bath fluid port for fast replacement of bath medium.

Standard Type:

• Blue LCD control panel.
• 5-stage program control for up to five timed operations.
• Remote communication port for computer connection.
• Temperature over-limit alarm and protection functions.

Technical Specifications (table):
Models: LSRB-1020, LSRB-1030, LSRB-1050, LSRB-1205, LSRB-1210, LSRB-1220, LSRB-1230, LSRB-1250
Temp. Range (°C): -100 ~ -60 (some models -120 ~ -60)
Temp. Stability (°C): ±2
Bath Volume (L): 5, 10, 20, 30, 50 (model dependent)
Bath Opening (Φ×H mm): examples 280×300, 320×235, 400×320, 210×180, 210×250
Bath Material: SUS304 stainless steel
Max flask (ml): up to 20000 (model dependent: examples 2000, 5000, 10000, 20000)
Heating Power (W): model dependent
Cooling Power (W) examples by target temp: -60°C: 600 / 620 / 700 / 110 / 160; -80°C: 480 / 480 / 580 / 50 / 70; -100°C: 180 / 200 / 420 / 30 / 40; -120°C: examples 20 / 40 / 80 / 125
Flow Rate (L/min): typical 20
Lift (m): 5 ~ 7
Refrigerant: mixed (model dependent)
Stirring: magnetic stirrer, 100 ~ 1000 rpm
Ambient Temp. (°C): 5 ~ 25
Power Supply (V/Hz): e.g., 380/50 or 220/50 (model dependent)
Overall Power (W): model dependent (examples 3234, 4876, 820, 2050)
Outer Material: SPCC steel with powder coating
Safety Protection: delay start, leakage protection, overcurrent and overheating alarms
Dimensions (L×W×H mm) examples: 1160×800×1310, 1315×800×1310, 750×605×965, 900×700×1000
Weight (kg) examples: 125, 150, 154, 180, 190, 200, 265

Technical features:

• Series: LSRB series with multiple model variants.
• Temperature capability: typically -100°C to -60°C; select models down to -120°C.
• Temperature stability: ±2°C for reproducible results.
• Bath material: corrosion-resistant SUS304 stainless steel.
• Available bath volumes to suit vessel sizes and throughput.
• Enclosed magnetic stirring for contamination control; adjustable speed 100–1000 rpm.
• Model-dependent cooling/heating power and electrical configuration; consult datasheet for exact values.
