Water heater IC series

circulationelectricmobile

Short description
Compact portable immersion heater and circulation pump designed for temperature control of baths up to 30 L, providing heating, temperature stabilization and circulation up to 100°C.

Product overview

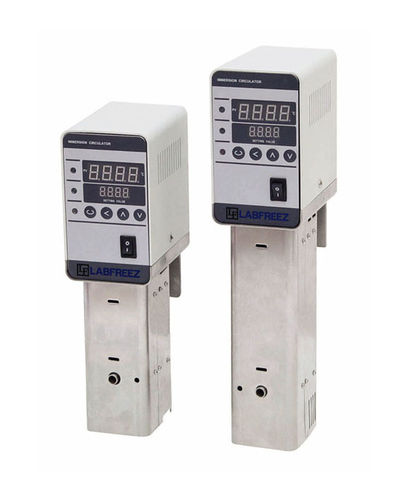

The IC series (models IC2 and IC3) integrates a heating element, circulation pump and digital thermostat in a stainless-steel housing. It delivers precise temperature control for water baths and small process tanks, suitable for laboratory and industrial support applications. The unit can be mounted fixed or flexible and adapted to various bath types.

Key features

• Digital dual-window color temperature display
• Microcomputer PID control with adaptive learning for ±0.1°C stability
• Stainless-steel construction and backflow mixing for uniform bath temperature
• Adjustable immersion depth and universal mounting for different baths
• Continuous or timer operation (0–9999 min)
• Compatible with baths up to ~30 L

Technical parameters

• Models: IC2, IC3
• Heating power: IC2 = 1000 W; IC3 = 1500 W
• Heating temperature: RT to 100°C
• Temperature display range: -50°C to 100°C; accuracy ±0.1°C
• Circulation flow rate: IC2 ≈ 10 L/min; IC3 ≈ 12 L/min
• Immersion depth: IC2 70–150 mm; IC3 70–210 mm
• Suitable bath volume: up to ~30 L
• Dimensions: IC2 W80×D125×H300 mm; IC3 W80×D125×H360 mm
• Power supply: AC 220–240 V, 50 Hz
• Weight: IC2 2.8 kg; IC3 3.1 kg
• Operation modes: Continuous or timer (0–9999 min)

Applications

• Petroleum, chemical, pharmaceutical, biochemistry, light industry, research laboratories and similar temperature-control needs
